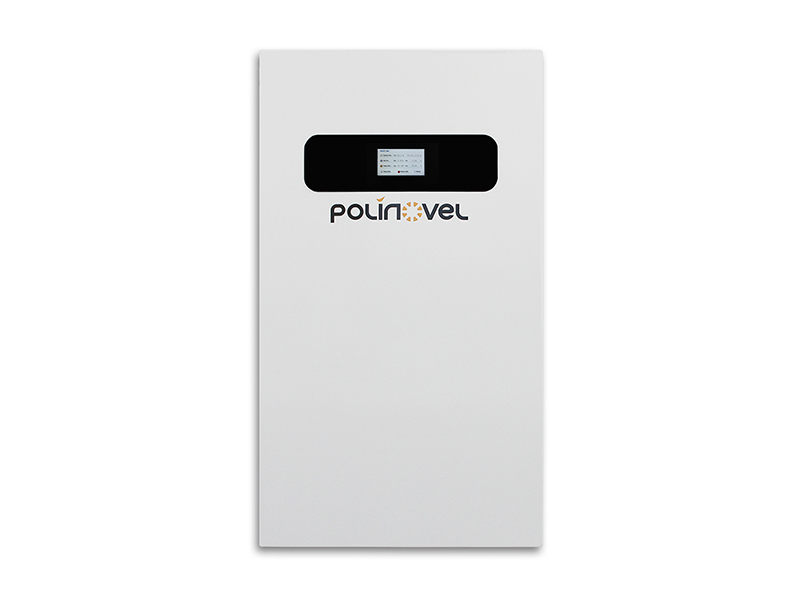

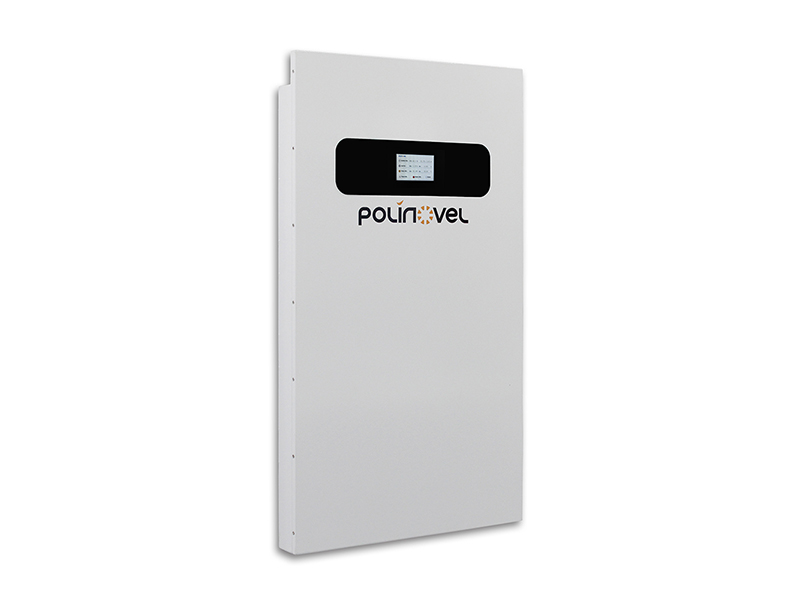

Power Wall LiFePO4 Battery Super Series

Polinovel Super series uses Grade-A LiFePO4 cells to ensure solar energy storage safety and efficiency. It helps you prepare your home for power failure and live a more sustainable way of life.

Features

  • A slim design with a thickness of 75mm ensures less installation space

  • LCD display screen to monitor battery's working status in real time

  • Support up to 15 units in parallel for capacity expansion

  • Compatible with multiple inverter brands on the market

icon icon icon icon

Product Details

Model Super5 Super10
Nominal Voltage 51.2V 51.2V
Nominal Capacity 100Ah 200Ah
Energy 5.12kWh 10.24kWh
Charge Cut-off Voltage 58.4V 58.4V
Discharge Cut-off Voltage 40V 40V
Charge Current 100A 100A
Max. Constant Discharge Current 100A 100A
Max. Modules in Parallel 15pcs in parallel 15pcs in parallel
Communication RS485/RS232/CAN RS485/RS232/CAN
Dimension (L*D*H) 590*75*1050 mm (23.2*3*41.3 in) 590*150*1050 mm (23.2*5.9*41.3 in)
Weight 50 kg (110 lbs) 100 kg (220.5 lbs)
Charge Temperature 0~60 °C 0~60 °C
Discharge Temperature -20~ 60°C -20~ 60°C
Storage Temperature 0~ 45°C 0~ 45°C

Comprehensive Accessories For You
