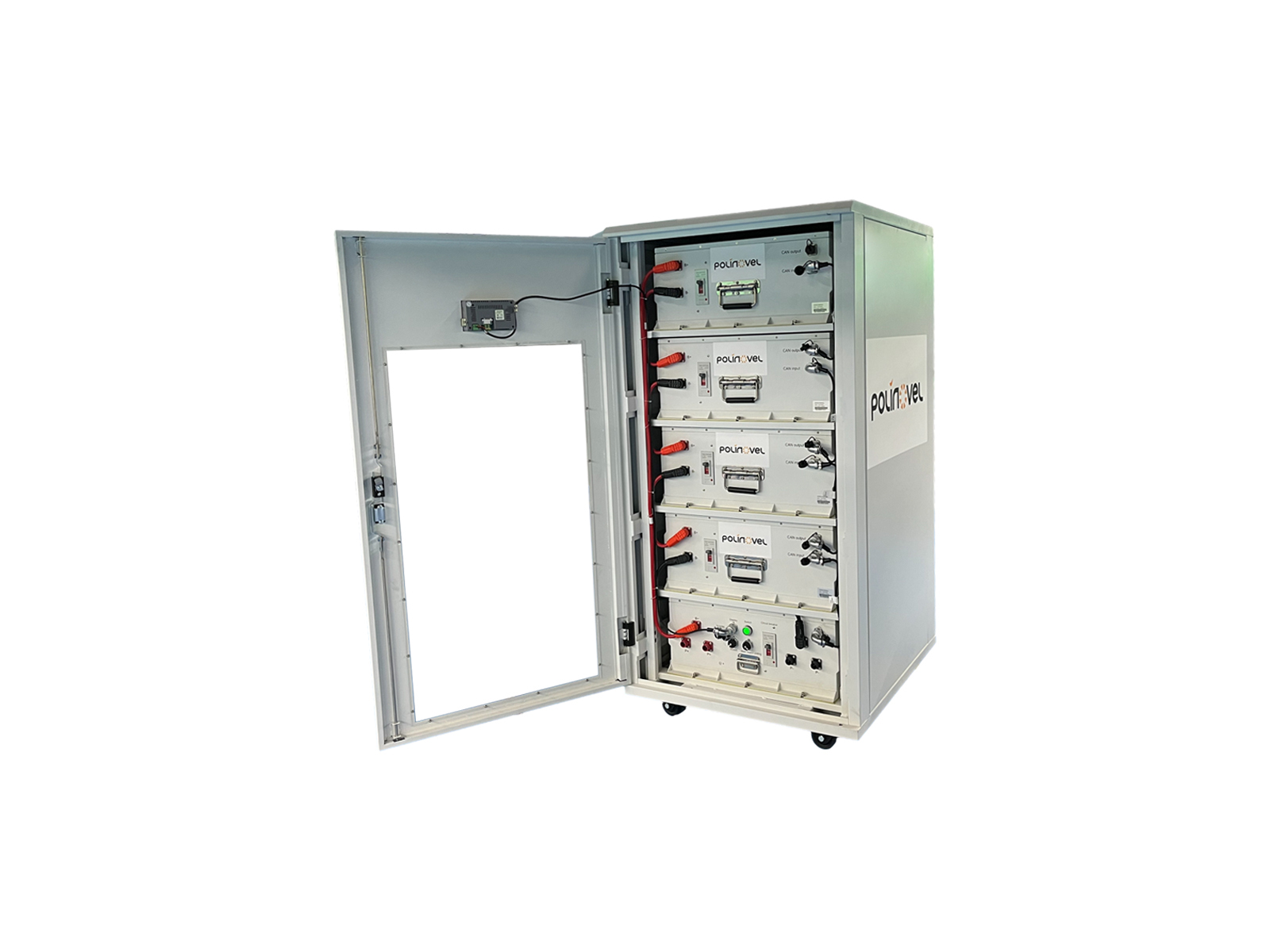

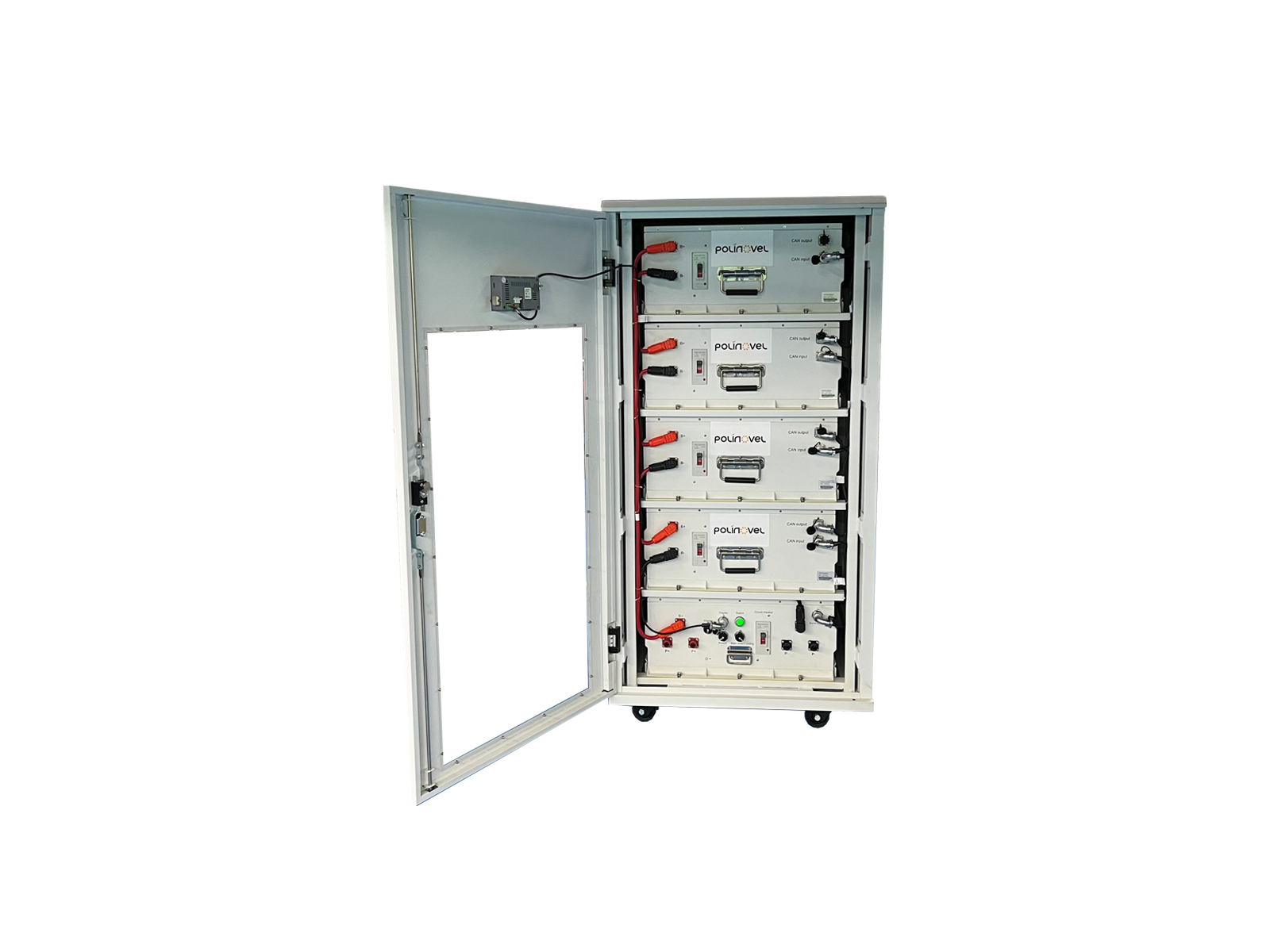

204V High Voltage LiFePO4 Energy Storage Battery

This 204.8V high voltage lithium energy storage battery uses automotive-grade processes, which is reliable battery solution that ensures continuous access to power supply.

Features

  • LiFePO4 battery with high safety and reliability

  • Automotive-grade technology and processes

  • Support parallel connection for power expansion

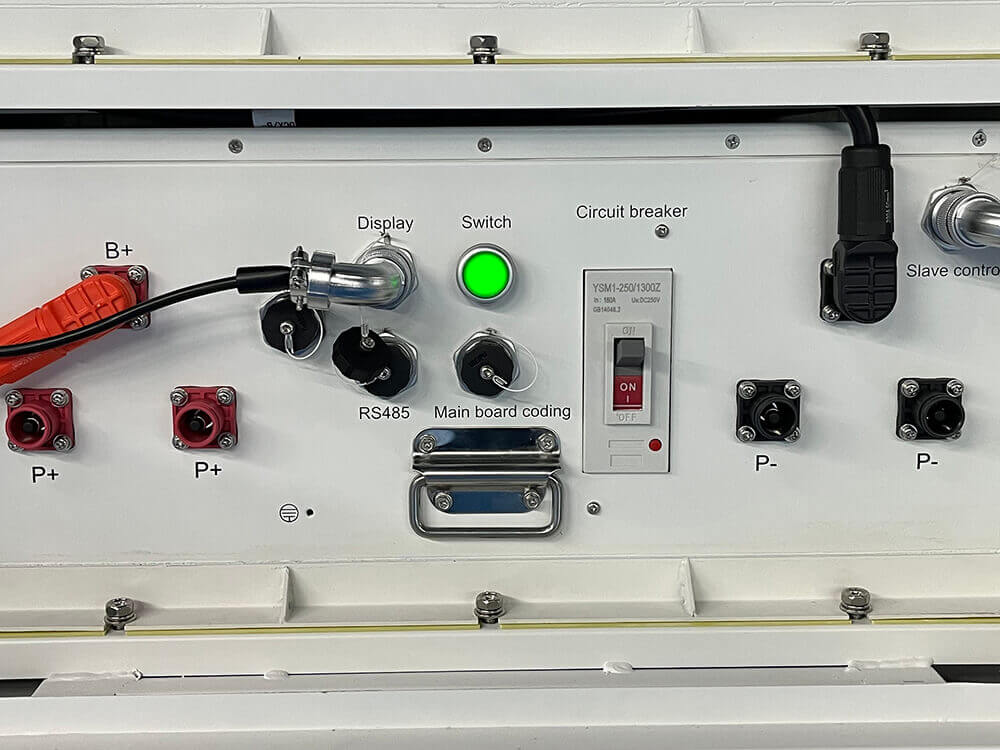

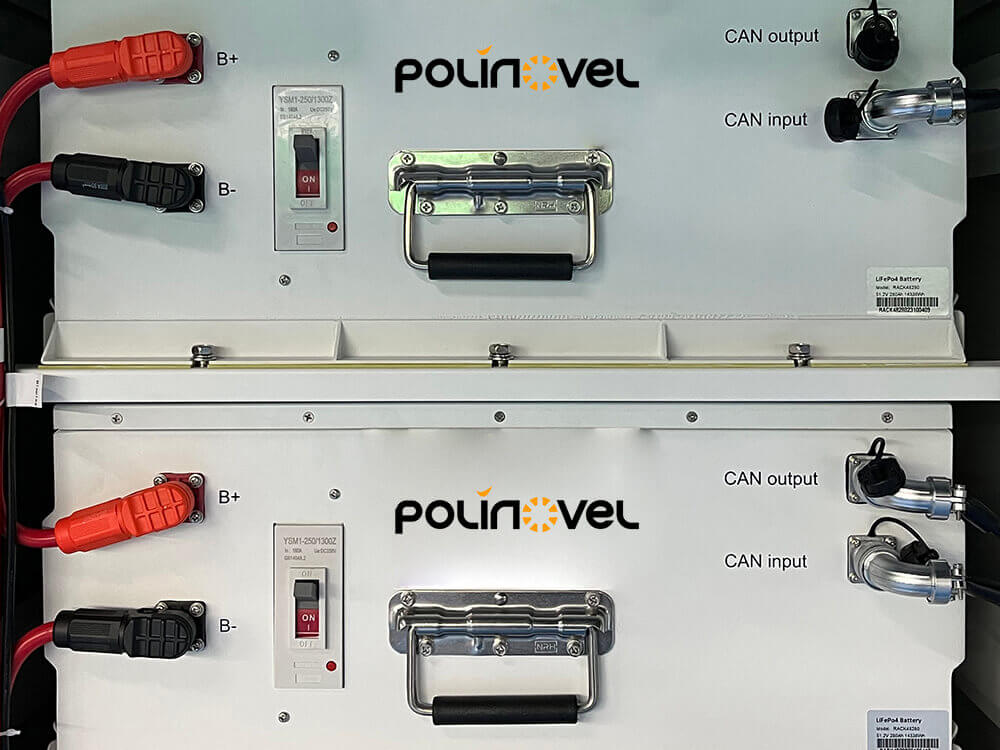

  • RS485 and CAN communication

  • Compatible with multiple inverter brands in the market

icon icon icon icon

Parameters

Model HV204280
Nominal Voltage 204.8V
Nominal Capacity 280Ah
Energy 57KWh
Charge Cut-off Voltage 230V
Discharge Cut-off Voltage 160V
Charge Current 100A
Max. Constant Discharge Current 100A
Peak Discharge Current 150A @10mS
Communication RS485/CAN
Dimension 850*770*1450 mm / 33.5*30.3*57.1 in
Weight 620 kg / 1367 lbs
Charge Temperature 0~45ºC
Discharge Temperature -15~60ºC
Storage Temperature 0~45ºC
