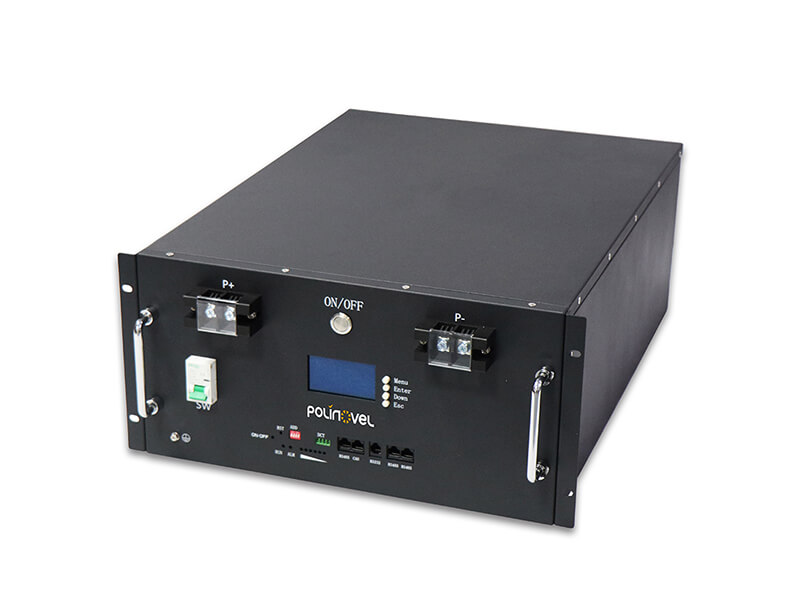

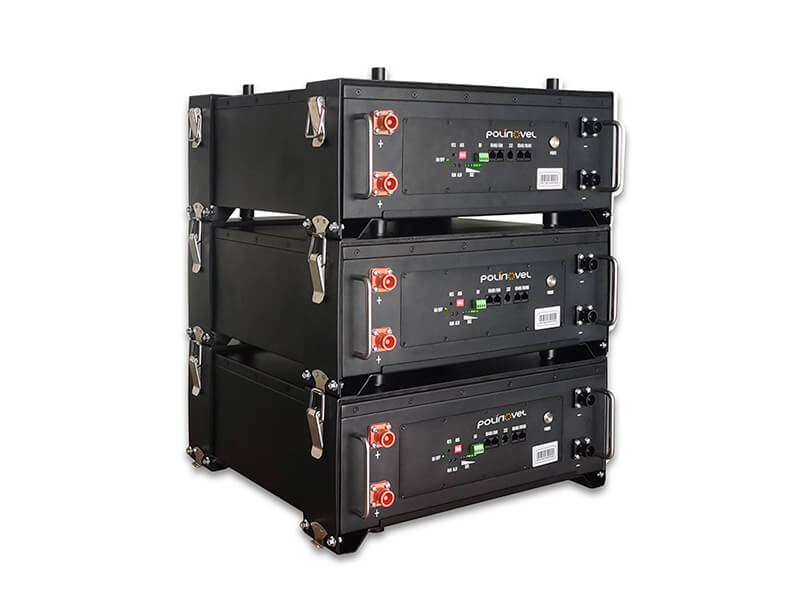

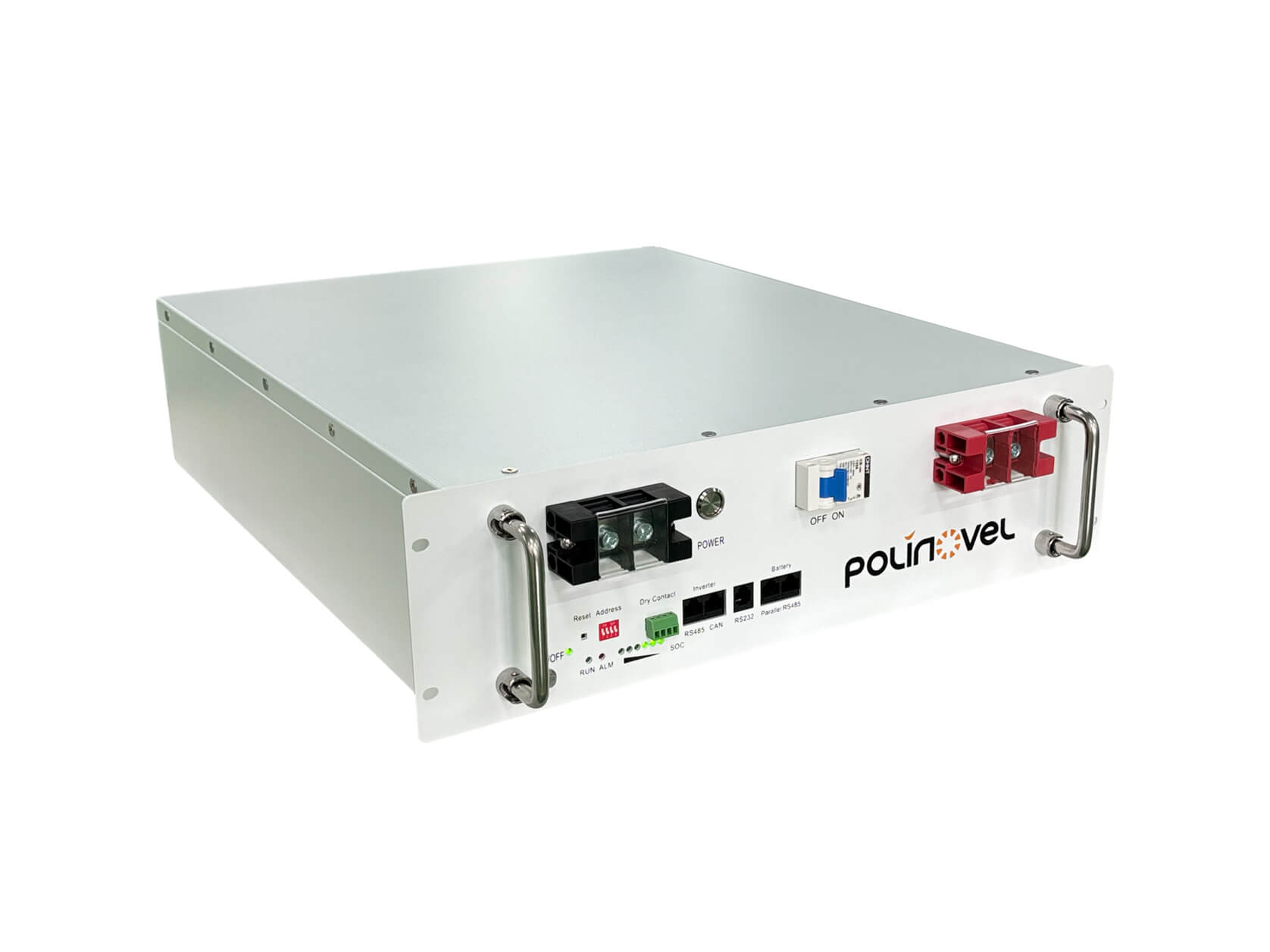

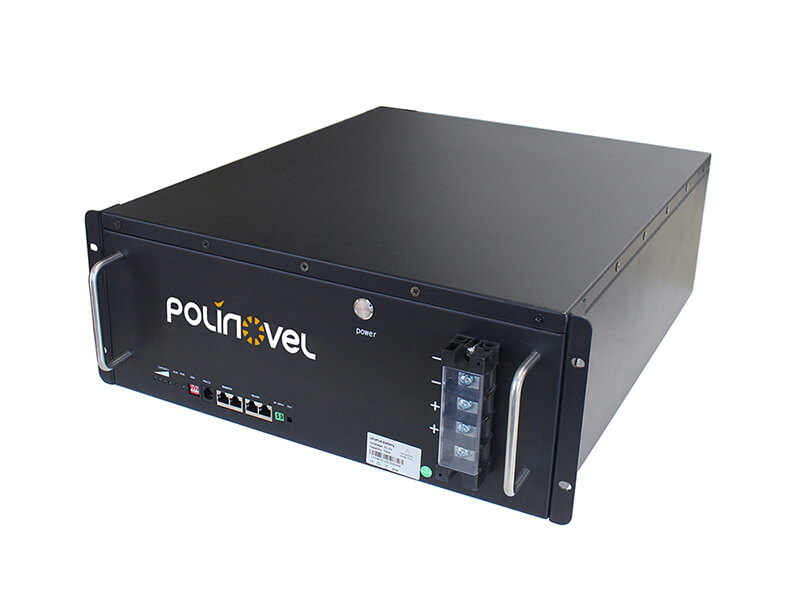

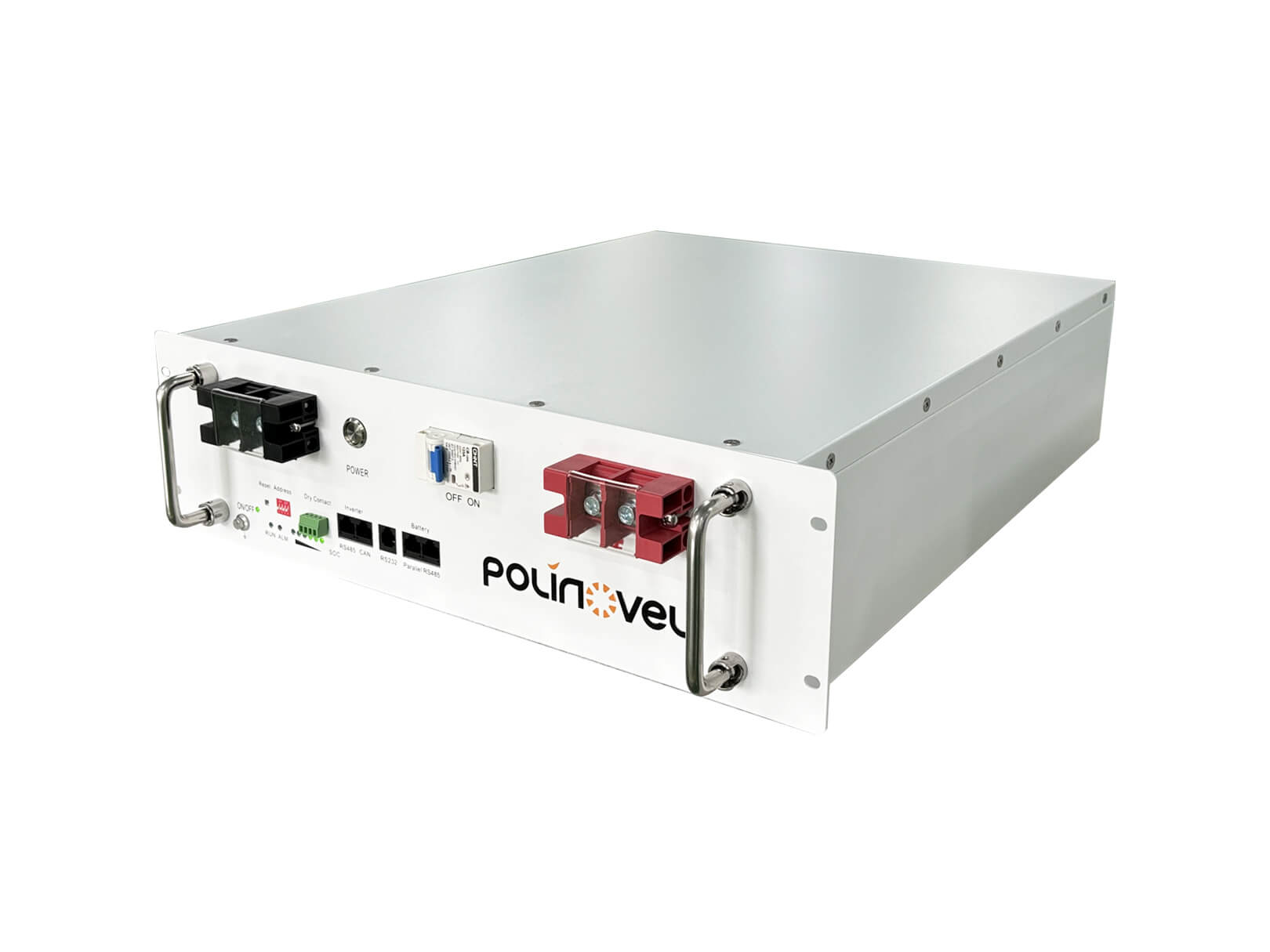

48V LiFePO4 Energy Storage Battery RACK Series
The rack-mountable design allows you to mount one or more lithium solar batteries into the rack, which saves much home installation space.
Features
-
LFP battery with a long lifespan
-
Compatible with multiple inverter brands
-
Allow up to 15 units in parallel
-
Communication protocols can be tailored
Product Details
| Model | RACK48100 | RACK48200 | RACK48280 | RACK51100 | RACK51200 | RACK51280 |
| Nominal Voltage | 48V | 51.2V | ||||
| Nominal Capacity | 100Ah | 200Ah | 280Ah | 100Ah | 200Ah | 280Ah |
| Energy | 4.8kWh | 9.6kWh | 13.44kWh | 5.12kWh | 10.24kWh | 14.336kWh |
| Charge Cut-off Voltage | 54.75V | 58.4V | ||||
| Discharge Cut-off Voltage | 40.5V | 43.2V | ||||
| Standard Charge Current | 20A | 40A | 40A | 20A | 40A | 40A |
| Max. Charge Current | 100A | 200A | 200A | 100A | 200A | 200A |
| Max. Constant Discharge Current | 100A | 200A | 200A | 100A | 200A | 200A |
| Peak Discharge Current | 200A @5s | 300A @5s | 300A @5s | 200A @5s | 300A @5s | 300A @5s |
| Max. Modules in Parallel | 15pcs in parallel | |||||
| Communication | RS485/RS232/CAN | |||||
| Dimension | 550*482*133 mm (21.7*19.0*5.2 in) | 812*513*205 mm (32*20.2*8.1 in) | 772*460*237 mm (30.4*18.1*9.3 in) | 550*482*133 mm (21.7*19.0*5.2 in) | 812*513*205 mm (32*20.2*8.1 in) | 772*460*237 mm (30.4*18.1*9.3 in) |
| Weight | 45 kg (99.2 lbs) | 84kg (185.2 lbs) | 108kg (238.1 lbs) | 47kg (103.6 lbs) | 88kg (194 lbs) | 114kg (251.3 lbs) |
| Charge Temperature | 0~45 °C | |||||
| Discharge Temperature | -20~55°C | |||||
| Storage Temperature | -10~40°C | |||||
Wide Range Of Applications
