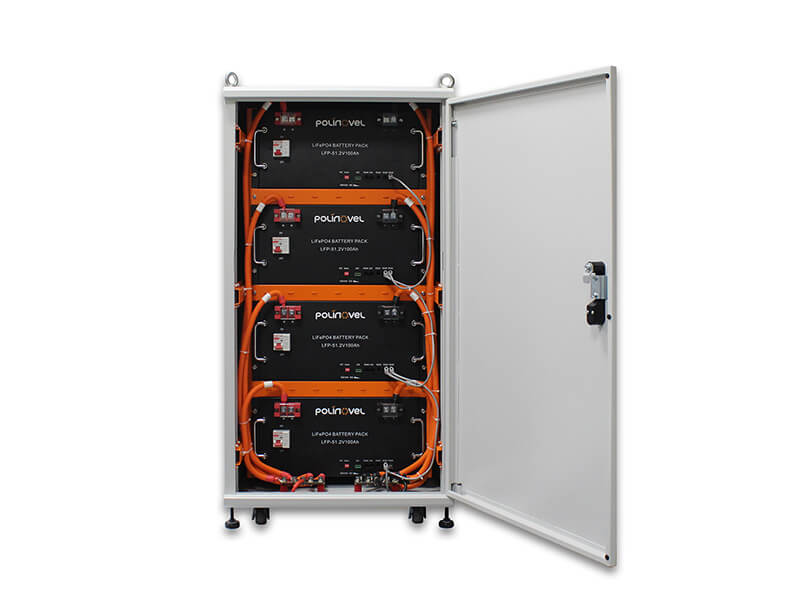

LiFePO4 Energy Storage Battery Cabinet Series

Polinovel Cabinet series lithium batteries come in 10kWh, 15kWh, 20kWh, 25kWh, and more capacities, allowing you to store sufficient solar energy to power your home and lower your electric bill.

Features

  • Great compatibility with multiple inverter brands

  • Customizable communication protocols

  • Up to 15 units in parallel for power expansion

  • Support GPS positioning

  • 3U/4U/5U/7U sizes available

icon icon icon icon

Product Details

Model Cabinet10 Cabinet15 Cabinet20 Cabinet25
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Nominal Capacity 200Ah 300Ah 400Ah 500Ah
Energy 10.24kWh 15.36kWh 20.48kWh 25.6kWh
Charge Cut-off Voltage 58V 58V 58V 58V
Discharge Cut-off Voltage 40V 40V 40V 40V
Recommended Charge Current 60A 100A 120A 150A
Max. Charge Current 100A 150A 200A 200A
Max. Constant Discharge Current 200A 300A 400A 500A
Peak Discharge Current 300A 400A 500A 600A
Max. Modules in Parallel 15pcs in parallel 15pcs in parallel 15pcs in parallel 15pcs in parallel
Communication RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN
Dimension (L*W*H) 600*600*720 mm (23.6*23.6*28.3 in) 600*600*987 mm (23.6*23.6*38.9 in) 600*600*1165 mm (23.6*23.6*45.9 in) 600*600*1378 mm (23.6*23.6*54.3 in)
Weight 95 kg (209.4 lbs) 141 kg (310.9 lbs) 187 kg (412.3 lbs) 243 kg (535.7 lbs)
Charge Temperature 0~50 °C 0~50 °C 0~50 °C 0~50 °C
Discharge Temperature -15~ 60°C -15~ 60°C -15~ 60°C -15~ 60°C
