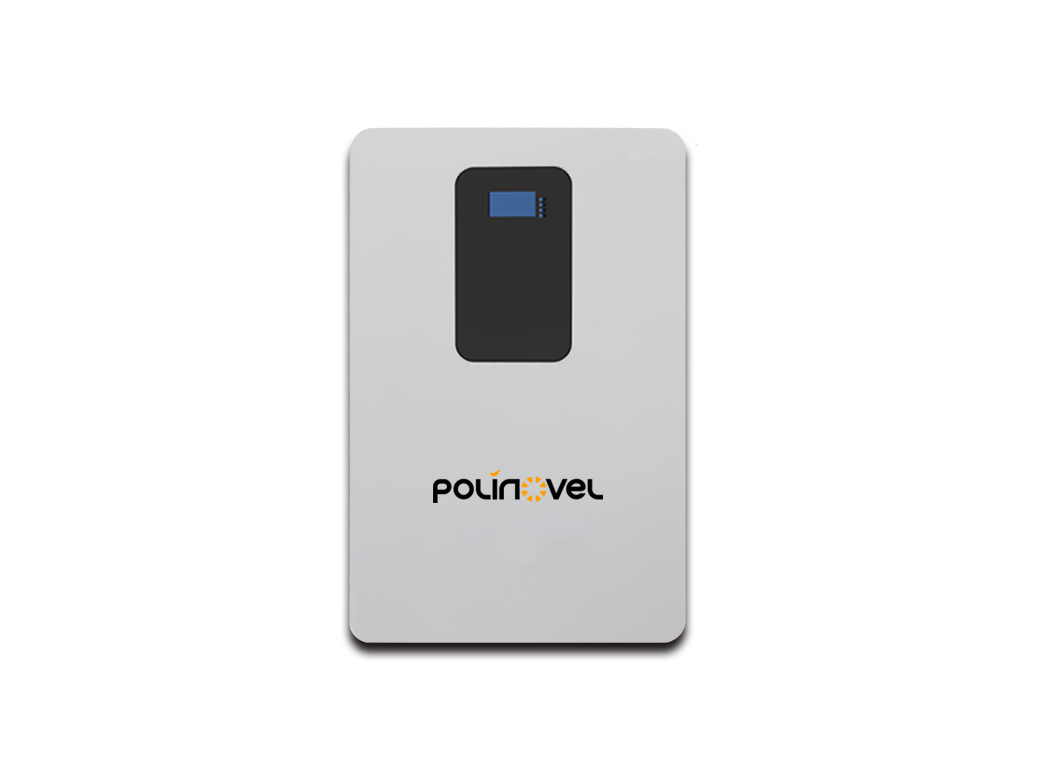

48V Lithium Energy Storage Battery WALL Series

Polinovel WALL Series residential battery utilizes robust and high-efficiency lithium iron phosphate chemistry. This makes it perfect for use in home storage systems to cut down on energy costs and power consumption. With high-current BMS, this lithium residential battery can run a 10KW inverter.

Features

  • A maximum of 15 units in parallel

  • Compatible with 20+ inverter brands

  • Drive 10KW inverter

  • Support bracket for easy installation

  • Communication protocol customization

  • LCD display with customized logo

icon icon icon icon

Parameters

Model WALL5 WALL8 WALL10
Nominal Voltage 51.2V 51.2V 51.2V
Nominal Capacity 100Ah 150Ah 200Ah
Energy 5.12kWh 7.68kWh 10.24kWh
Charge Cut-off Voltage 58V 58V 58V
Discharge Cut-off Voltage 40V 40V 40V
Standard Charge Current 30A/100A 45A/100A 60A/100A
Max. Charge Current 50A/100A 75A/150A 100A/200A
Max. Constant Discharge Current 150A 200A 200A
Peak Discharge Current 200A 300A 300A
Max. Modules in Parallel 15pcs in parallel 15pcs in parallel 15pcs in parallel
Communication RS485/RS232/CAN RS485/RS232/CAN RS485/RS232/CAN
Dimension 535*455*145 mm (21.1*17.9*5.7 in) 670*540*170 mm (26.4*21.3*6.7 in) 870*465*145 mm (34.3*18.3*5.7 in)
Weight 49 kg (108 lbs) 72 kg (158.7 lbs) 94 kg (207.2 lbs)
Charge Temperature 0~50 °C 0~50 °C 0~50 °C
Discharge Temperature -15~ 60°C -15~ 60°C -15~ 60°C
