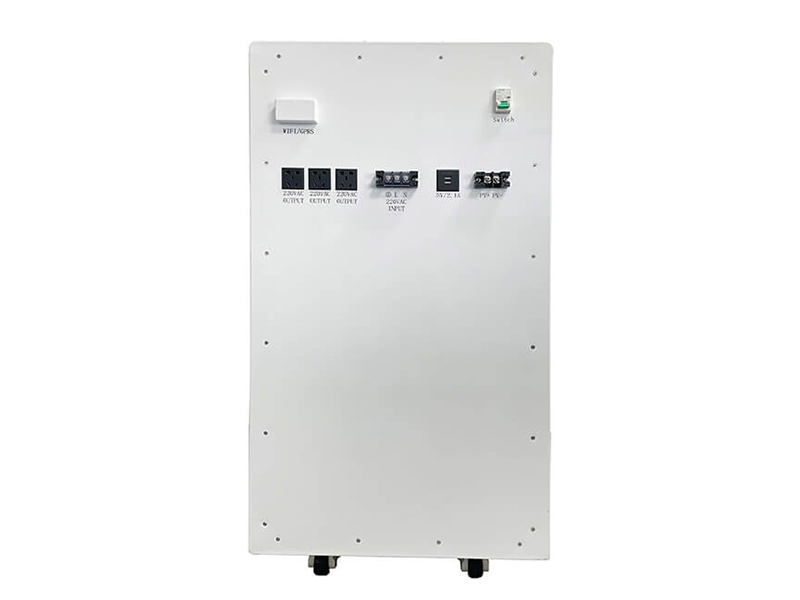

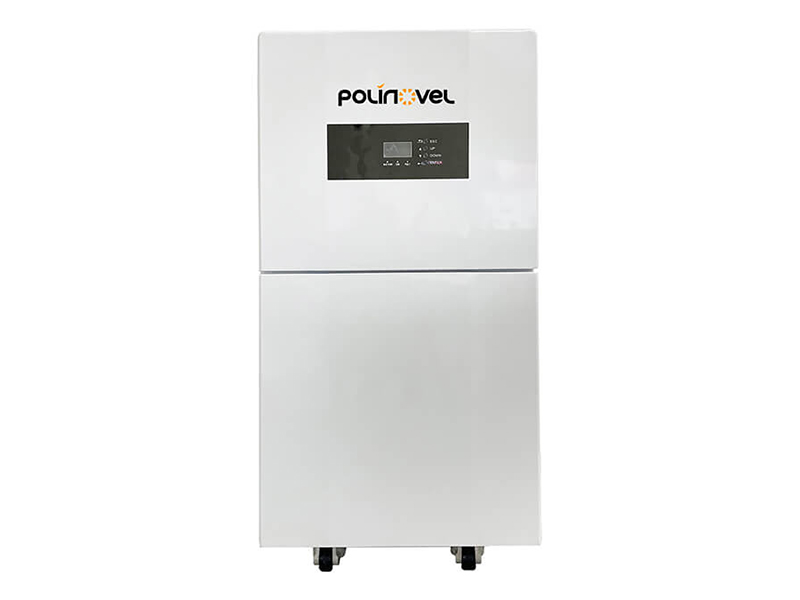

15kWh LiFePO4 Solar Energy Storage Battery BESS15
This BESS15 LFP battery integrated controller, inverter, and lithium batteries. It is easy to install. With scientific internal design and high-quality LiFePO4 battery cells, it is an ideal choice for solar energy storage.
Features
-
All-in-one battery solution
-
Intelligent BMS
-
Safe LiFePO4 battery cells
-
WiFi/GPRS monitoring
Product Details
| Model | BESS15 | |
| Energy | 15.36kWh | |
| Nominal Capacity | 300Ah | |
| Nominal Voltage | 51.2V | |
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |
| Operating Voltage | 44.8V ~ 54.75V | |
| Charge Current | Standard 50A, Max. 100A | |
| Max. Constant Discharge Current | 100A | |
| Peak Discharge Current | 150A @ 1s | |
| BMS | Yes (intelligent protection BMS per module) | |
| Solar Inverter Parameter | ||
| Rated Output Power | 5KVA / 5KW | |
| Peak Output Power | 10KVA | |
| Wave Form | Pure Sine Wave | |
| AC Output | 230Vac, 50/60Hz | |
| Solar Charger (MPPT) Parameter | ||
| Max. PV Array Power | 4.5KW | |
| MPPT Operating Voltage Range | 60Vdc – 115Vdc | |
| Max. PV Array Open Circuit Voltage | 145Vdc | |
| Max. Solar Charge Current | 60A | |
| Max. Efficiency | 0.98 | |
| AC Charger Parameter | ||
| Max. AC Charge Current | 60A | |
| AC Input Voltage Frequency | 230Vac, 50/60Hz (auto sensing) | |
| Selectable Voltage Range | 170~280Vac | |
| General Parameter | ||
| Dimension (L* W*H) mm | 620*390*1331 | |
| Net Weight | 170kg | |
| Charge Temperature | 0℃ ~ 45℃ | |
| Discharge Temperature | -20℃ ~ 60℃ | |
| Storage Temperature | 0℃ ~ 40℃ | |
| IP Rating | IP54 | |
| Communication | WiFi/GPRS (Optional) | |
| Warranty | Standard 5 years, 10 years optional | |
Wide Range Of Applications
