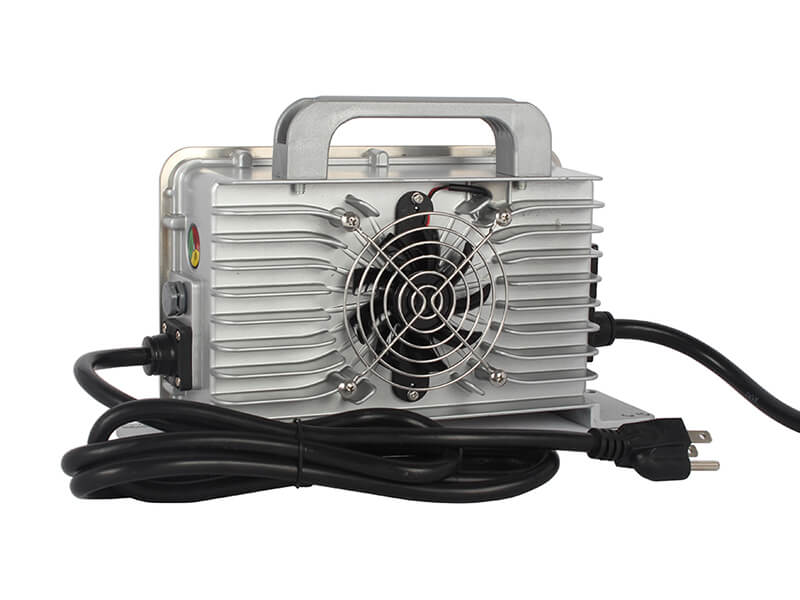

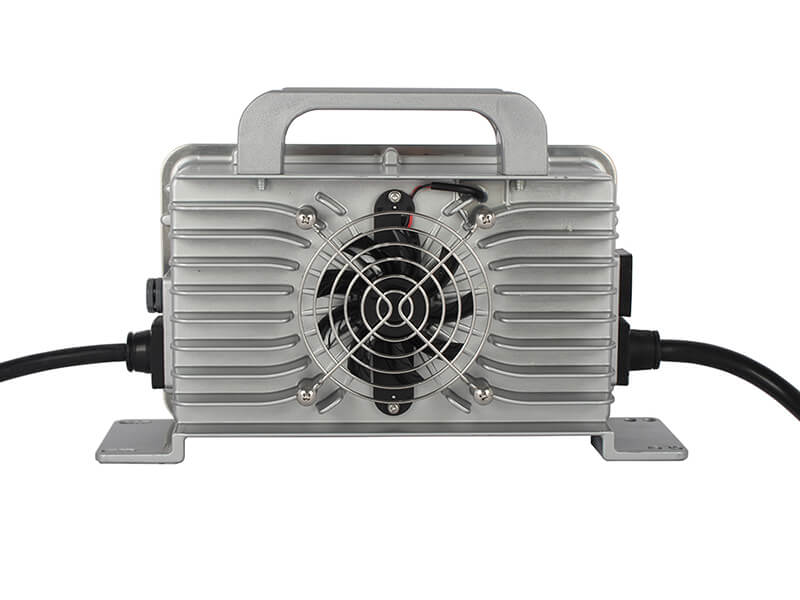

1500W Lithium Battery Charger LBC1500

This LBC1500 lithium battery charger has a wide working temperature range and good vibration resistance performance. It can be widely used for golf carts, electric vehicles, forklifts, etc.

Features

  • High efficiency

  • APFC function

  • Soft switching technology

  • Wide working temperature range

icon icon icon icon

Product Details

Specification LBC1500
Manufacturer Polinovel
Model PLCZ1-4820C
Rated Output Voltage 58.4VDC
Rated Output Current 20A
Max. Output Power 1500W
Input Voltage Range 90-264VAC
Input Frequency Range 40-70Hz
Input Current ≤11A
Efficiency ≥93%
Power Factor ≥0.98
Applicable Battery 48V, 16S, LiFePO4
Shell Material Aluminum
Protection Level IP67
Operating Temperature -40℃~60℃
Storage Temperature -55℃~100℃
Noise ≤45dB
LED Light Indicator For Charging Process Standard
Dimension (LxWxH) 282*146*82 mm (11.1*5.7*3.2 in)
Weight 2.7 kg (6 lbs)
