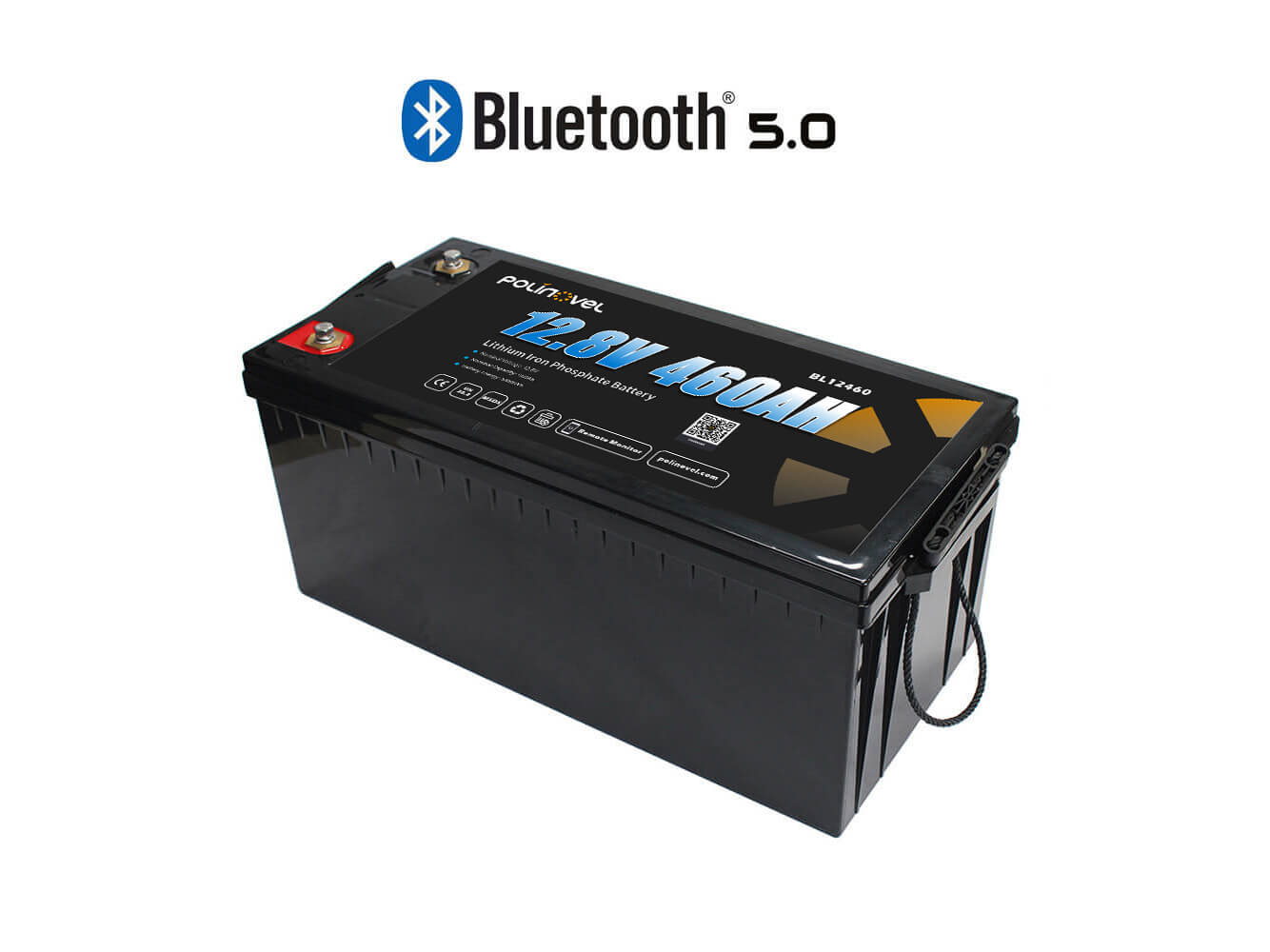

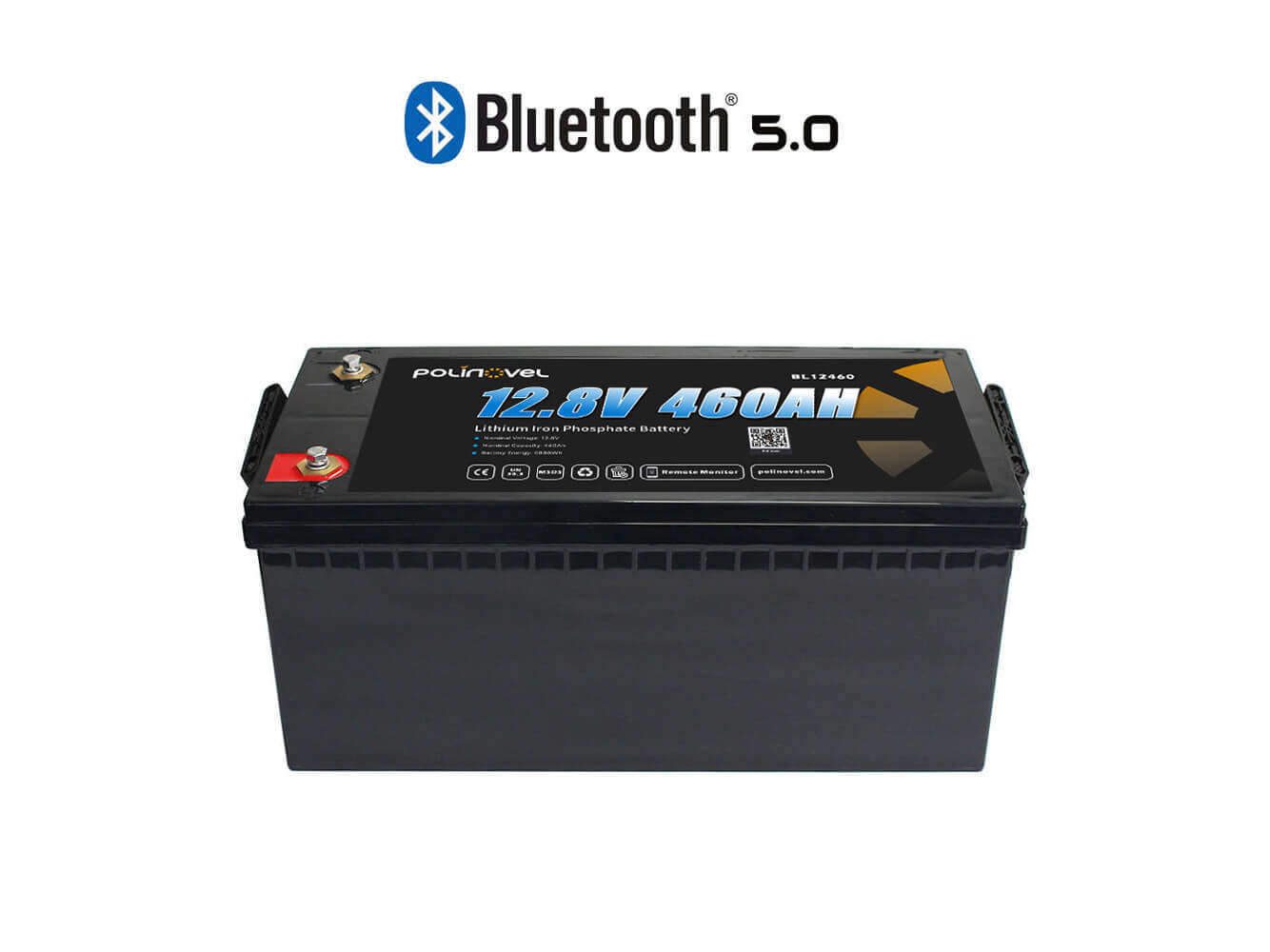

This BL12450 lithium battery adopts advanced Bluetooth technology. You can view the voltage, SOC, capacity, and other information on your phone.
Monitor battery working status on your phone
Remote control battery power on-off
Measuring distance >10m
IP65 waterproof level
Model | BL12450 |
Nominal Voltage | 12.8V |
Nominal Capacity | 450Ah |
Energy | 5760Wh |
Recommend Charge Voltage | 14.6V |
Discharge Cut-off Voltage | 10V |
Max. Charge Current | 100A |
Max. Constant Discharge Current | 200A |
Dimension (L*W*H) | 640*245*220 mm (25.2*9.6*8.7 in) |
Weight | 48 kg (106 lbs) |
Terminal | M8 |
Casing Material | ABS |
IP Rating | IP65 |
Battery Type | Lithium Iron Phosphate (LiFePO4) |
Self Discharge Per Month | <3% |
Charge Temperature | 0 to 45ºC |
Discharge Temperature | -20 to 60ºC |
Storage Temperature | 0 to 40ºC |
