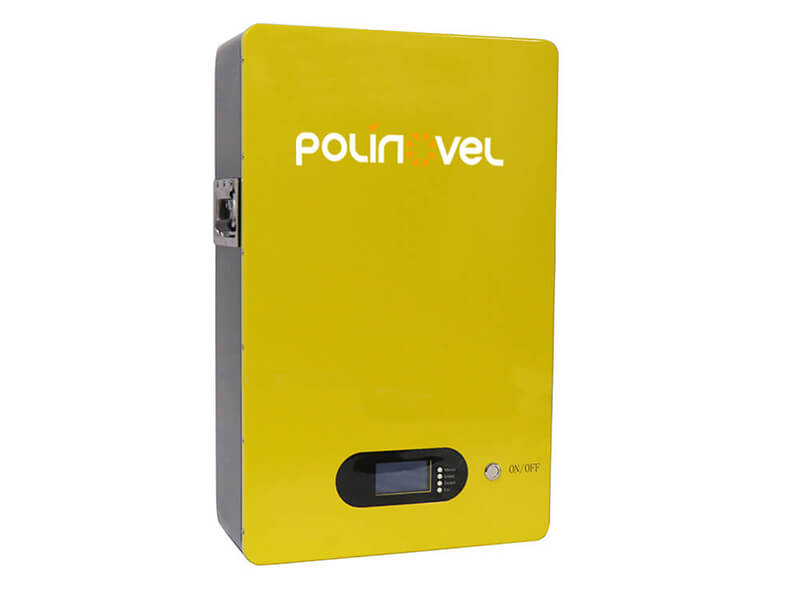

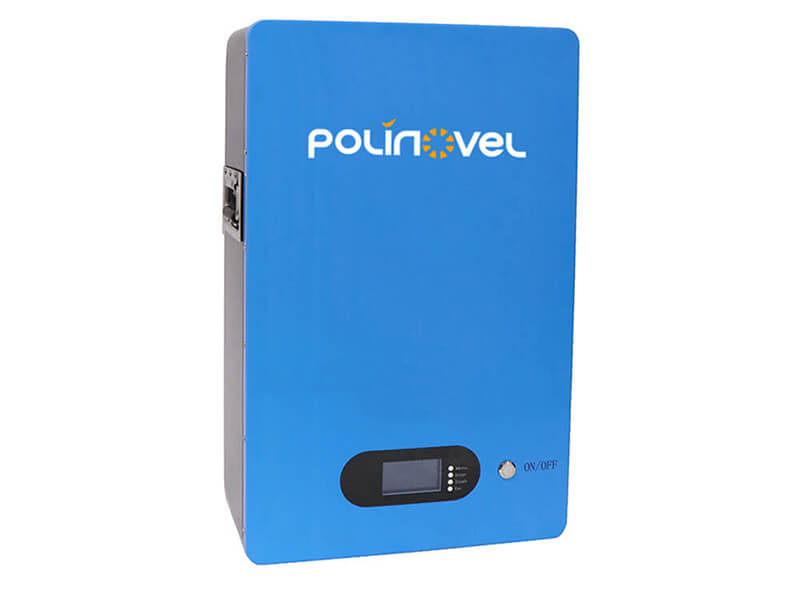

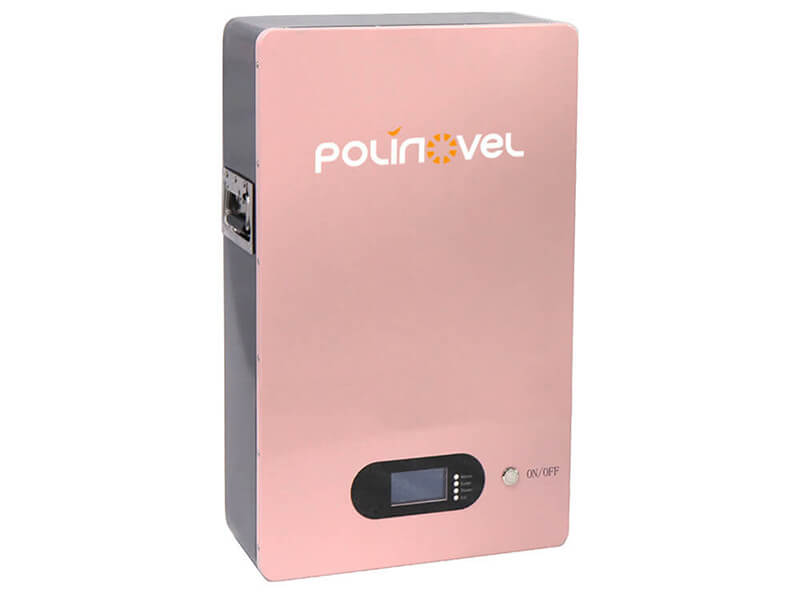

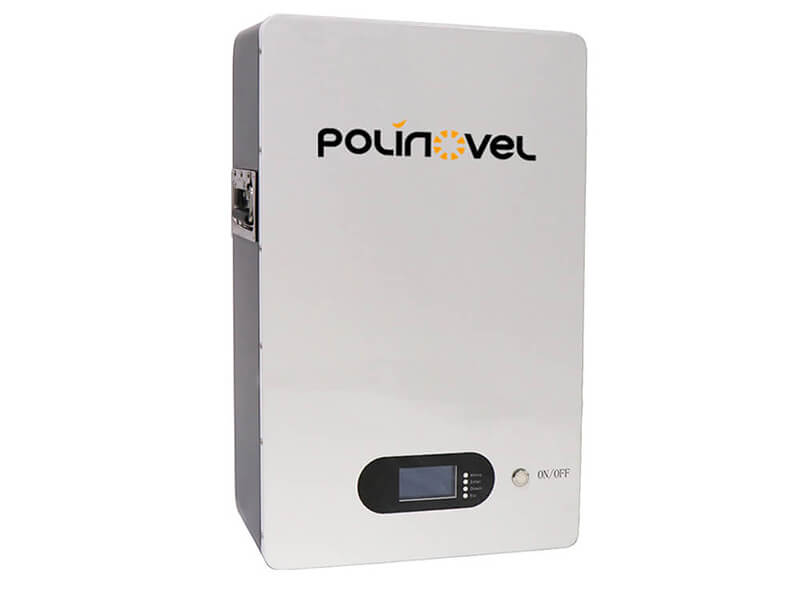

5kWh Power Wall Lithium Battery WALL100
This WALL100 lithium battery supports up to 15 pcs in parallel, which can perfectly meet your needs to store solar energy.
Features
-
Module design in a compact size
-
Allow 15pcs in parallel to expand capacity
-
Compatible with most inverter brands in the market
-
Support RS485, CAN communication
Product Details
| Model | WALL100 | |
| Nominal Voltage | 48V | 51.2V |
| Nominal Capacity | 100Ah | 100Ah |
| Energy | 4.8kWh | 5.12KWh |
| Dimension (H*W*D) mm | 630*400*220 | 630*400*220 |
| Weight | 50kg | 50kg |
| Recommend Charge Current | 50A | 50A |
| Max. Constant Discharge Current | 100A | 100A |
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |
| Case | Iron | |
| Color | Green/Yellow/Blue/White/Pink/Brown/Customizable | |
| Self Discharge Per Month | <3% | |
| Max. Modules in Parallel | 15pcs in parallel | |
| Communication | RS232 / RS485 / CAN | |
| Life Cycles | >4000 Times | |
| IP Rating | IP65 | |
| Charge Temperature | 0 to 45ºC | |
| Discharge Temperature | -20 to 60ºC | |
| Storage Temperature | 0 to 40ºC | |
Wide Range Of Applications
