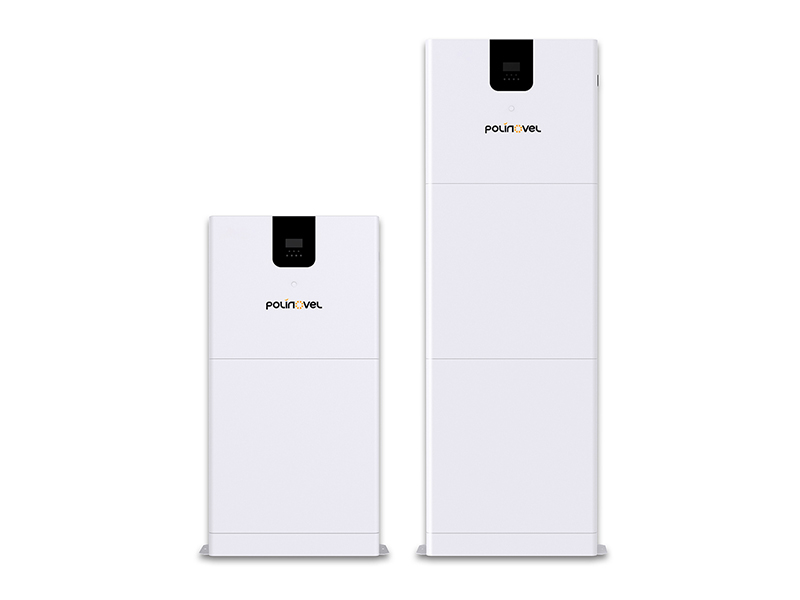

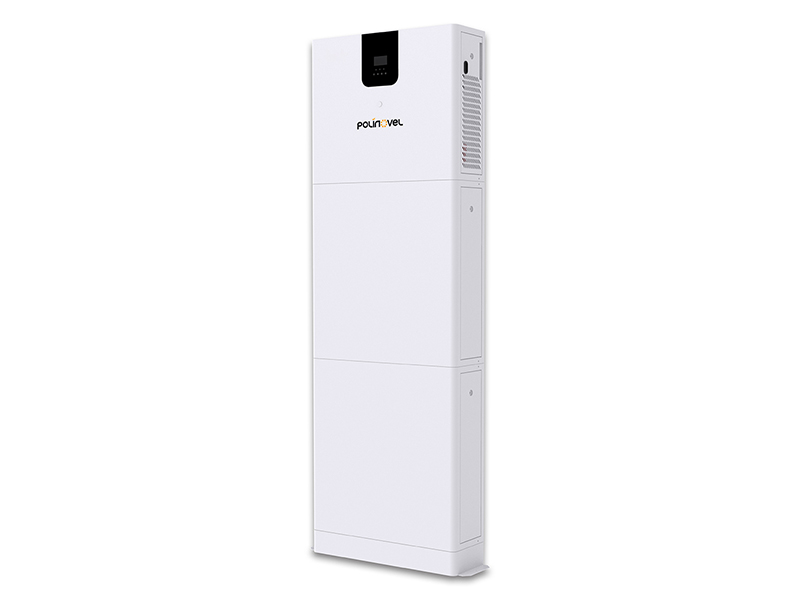

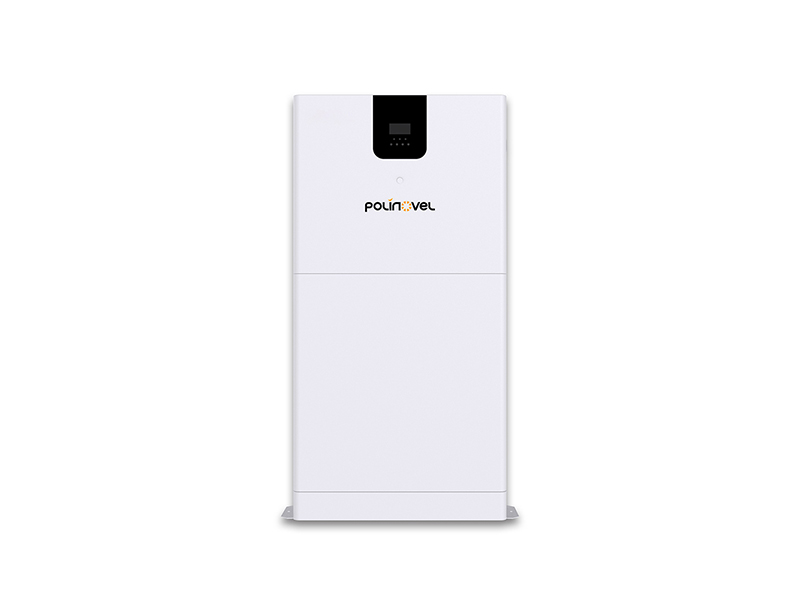

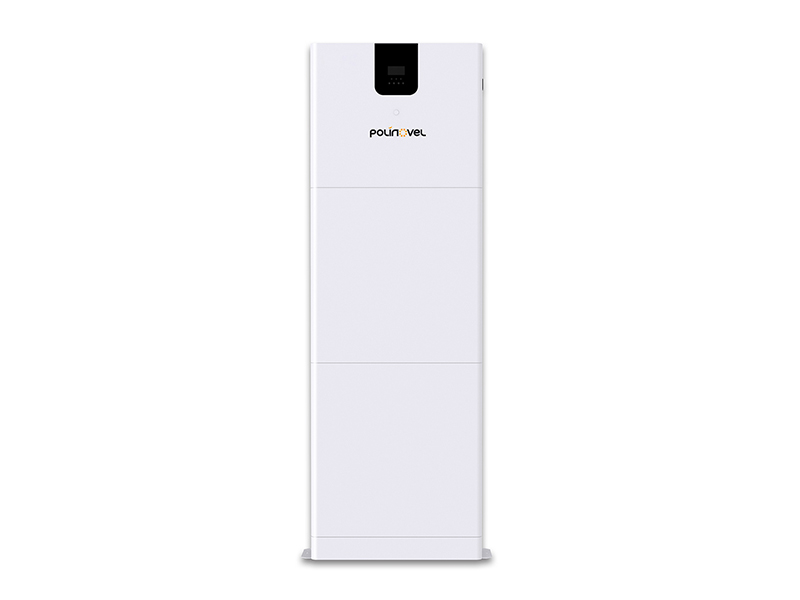

48V All-In-One LiFePO4 Home Battery WE Series
Polinovel WE series lithium battery system integrates the 48V LiFePO4 battery pack and an inverter together, reducing the pairing process and ensuring convenience of use.
Features
-
All-in-one battery solution
-
Plug and play connection for quick installation
-
Modular design ensures flexible configuration
-
Support a maximum of 4 units in parallel
Product Details
| Model | WE5 | WE10 | WE15 | WE20 |
| BATTERY TECHNICAL SPECIFICATION | ||||
| Number of Batteries | 1 | 2 | 3 | 4 |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 400Ah |
| Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
| Weight | 80kg | 130kg | 190kg | 250kg |
| Dimension (L*D*H) mm | 600×184×1190 | 600×184×1800 | 600×184×1800 600×184×690 |
600×184×1800 600×184×1300 |
| Battery Type | LiFePO4 | |||
| Battery Working Voltage Range | 44.8 – 57.6V | |||
| Maximum Charging Current | 100A | |||
| Maximum Discharging Current | 100A | |||
| DOD | 80% | |||
| Max. Modules in Parallel | 4pcs in parallel | |||
| Designed Life Span | 6000 | |||
| INVERTER TECHNICAL SPECIFICATION | ||||
| PV CHARGE | ||||
| Solar Charge Type | MPPT | |||
| Maximum Output Power | 5000W | |||
| PV Charging Current Range | 0-80A | |||
| PV Operating Voltage Range | 120-500V | |||
| MPPT Voltage Range | 120-450V | |||
| AC CHARGE | ||||
| Maximum Charge Power | 3150W | |||
| AC Charging Current Range | 0-60A | |||
| Rated Input Voltage | 220/230Vac | |||
| Input Voltage Range | 90-280Vac | |||
| AC OUTPUT | ||||
| Rated Output Power | 5000W | |||
| Maximum Output Current | 30A | |||
| Frequency | 50Hz | |||
| Overload Current | 35A | |||
| BATTERY INVERTER OUTPUT | ||||
| Rated Output Power | 5000W | |||
| Maximum Peak Power | 10KVA | |||
| Power Factor | 1 | |||
| Rated Output Voltage (Vac) | 230Vac | |||
| Frequency | 50Hz | |||
| Auto Switch Period | ＜15ms | |||
| THD | ＜3% | |||
| GENERAL DATA | ||||
| Communication | RS485/CAN/WIFI | |||
| Storage Time / Temperature | 6 months @25℃; 3 months @35℃; 1 month @45℃ | |||
| Charging Temperature Range | 0-45℃ | |||
| Discharging Temperature Range | -10-45℃ | |||
| Operation Humidity | 5%-85% | |||
| Nominal Operation Altitude | ＜2000m | |||
| Cooling Mode | Force-Air Cooling | |||
| Noise | 60dB(A) | |||
| Ingress Protection Rating | IP20 | |||
| Recommended Operation Environment | Indoor | |||
| Installation Method | Vertical | |||
| Certification | CE, MSDS, UN38.3 | |||
