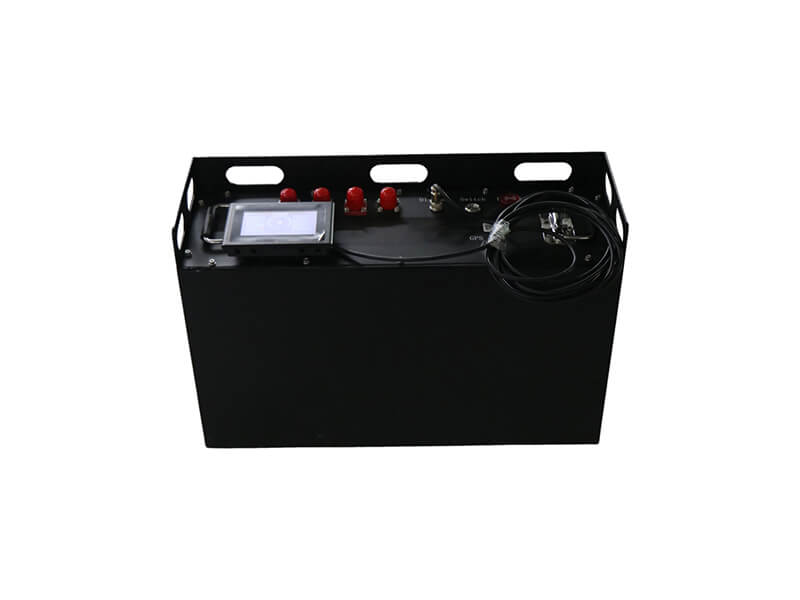

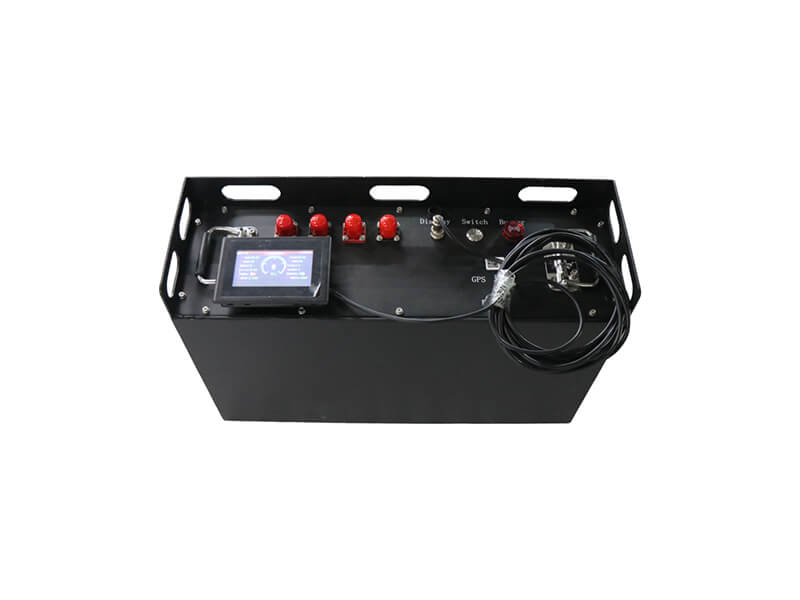

24V 105Ah Lithium Battery For Forklift FL24105
This FL24105 lithium battery has passed the rigorous reliability test of important components which ensures the stability of the whole performance.
Features
-
LiFePO4 chemistry ensures superior performance
-
Long cycle life: ≥2500 cycles (1C@DOD100%)
-
Solid and durable structure
-
Customizable specification or logo acceptable
Product Details
| Model | FL24105 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 105Ah |
| Energy | 2688Wh |
| Standard Charge Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Charge Current | 55A |
| Max. Continuous Discharge Current | 86A |
| Peak Discharge Current | 200A @5s |
| Dimension (L*W*H) | 570*185*380 mm (22.4*7.3*15 in) |
| Weight | 35 kg (77 lbs) |
| Cycle Life @DOD100% | ≥2000 cycles |
| Charge Temperature | 0~45ºC |
| Discharge Temperature | -20~55ºC |
| Storage Temperature | 10~45ºC |
