198KWh Commercial Grid Scale Energy Storage Lithium Battery

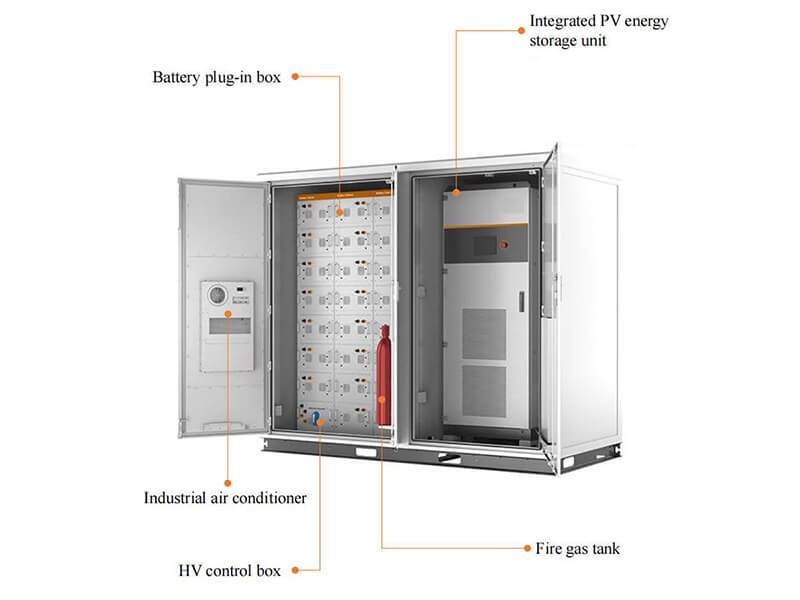

This large scale commercial battery system incorporates an energy storage converter and a PV converter, and can generate electricity efficiently using PV. It can be directly connected to photovoltaic solar panels to prioritise battery charging, as well as convert the photovoltaic current output into grid-available power.
Features
-
Proven LiFePO4 chemistry with good consistency and superior charging & discharging performance
-
Modular system to flexibly match various industrial and commercial scenarios
-
Intelligent BMS guarantees multiple safety protections
-
Seamless switching to power supply by converter
Product Details
| Model | CBS200 |
| PCS Power | 100KW |
| Energy | 198KWh |
| Burst Mode | 220S1P(704V280Ah) |
| Charging and Discharging Rate | 0.5C |
| DC-side Voltage Range | 626V~803V |
| Maximum AC Output Capacity | AC400V-160A |
| Photovoltaic Input Range | 450-850VDC |
| IP Degree | IP54 |
| Communication | RS485/CAN2.0 |
| User Interface | 7” display |
| Cooling Mode | Forced Air Cooling |
| Fire Protection | Heptafluoropropane |
| Altitude | ≤3000 m |
| Cycle Life | ≥6000 cycles (EOL 70%) |
| Dimension | 2170*1300*2400mm / 85.4*51.2*94.5in |
| Weight | 3400kg / 7496lbs |
| Certification | UL 1973, IEC 62619, UN 38.3, UL 9540A, GB/T 36276 |
| Ambient Temperature/Humidity | -20℃~50℃ / 5%~95% |
Wide Range Of Applications
