Small 12V Lithium Battery for Fishfinder
Polinovel 12V small batteries have larger power, less weight, and last years longer than lead-acid batteries. They are compact and powerful to suit various deep cycle applications, such as LED lights, CCTV cameras, routers, garage door openers, fishfinders, wheelchairs, lawn mowers, etc.
Features
-
Safe and proven LiFePO4 battery for high performance
-
Intelligent BMS ensures maximum protections
-
Support series and parallel connection to expand power
-
Long cycle life: withstand 2500+ cycles (1C@DOD100%)
Product Details

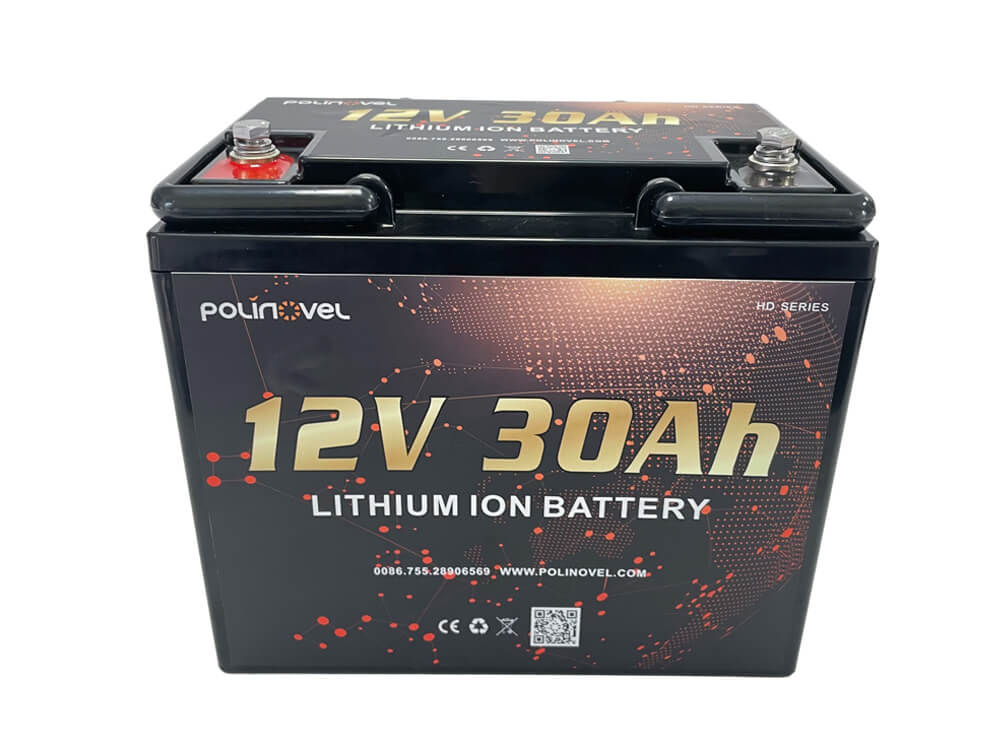

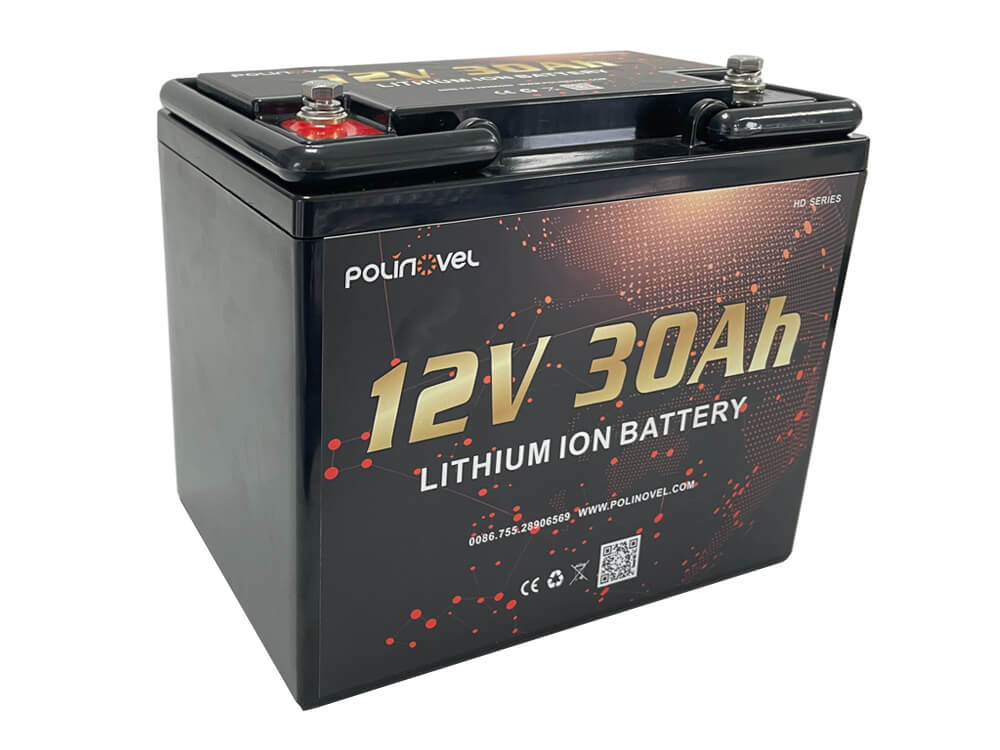

| Model | HD1230 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 30Ah |
| Standard Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Charge Current | 20A |
| Max. Constant Discharge Current | 30A |
| Peak Discharge Current | 50A @10s |
| Dimension (L*W*H) | 195*133*171mm / 7.7*5.2*6.7in |
| Weight | 4.2kg / 9lbs |
| Cycle Life | >2500 (1C@ DOD100%); >4000 (0.2C@ DOD100%) |
| Series Parallel Application | Up to 4 units in series or 2 units in parallel |
| Charge Temperature | 0 to 60ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature | 10 to 45ºC |
