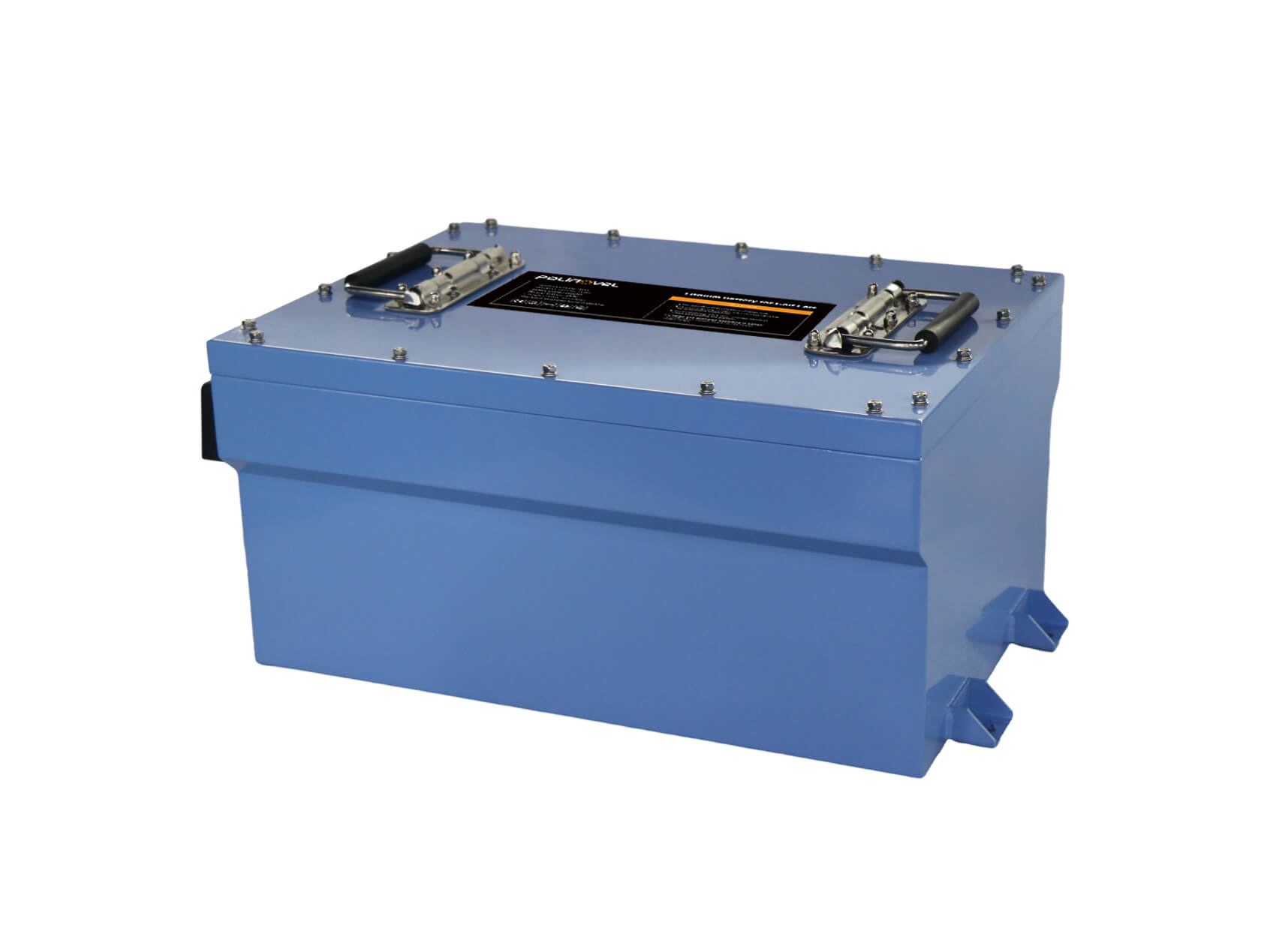

36V 230Ah LFP Golf Cart Battery
This 36V 230Ah lithium golf cart battery has a high output power, offering a substantial increase in torque and speed. Additionally, it is equipped with a highly advanced BMS that makes it easy to handle motor and controller upgrades while ensuring safe operation.
Features
-
LFP battery guarantees long runtime and high efficiency
-
Advanced BMS prevents over/under voltage, over-current, extreme temperature, etc
-
Customize battery with drop-in replacement size for easy installation
-
Plug-and-play fuel gauge displays state of charge (SOC) in real time
Product Details
| Model | Golf38230 |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 230Ah |
| Energy | 8832Wh |
| Standard Charge Voltage | 43.8V |
| Discharge Cut-off Voltage | 30V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Max. Constant Discharge Current | 200A |
| Peak Discharge Current | 400A @10s |
| Dimension | 670*278*280 mm (26.4*10.9*11 in) |
| Weight | 75 kg (165.3 lbs) |
| Cycle Life | >2500 (1C@ DOD100%); >4000 (0.2C@ DOD100%) |
| Charge Temperature | 0~60 °C |
| Discharge Temperature | -20~ 60°C |
| Storage Temperature | 10~ 45°C |
