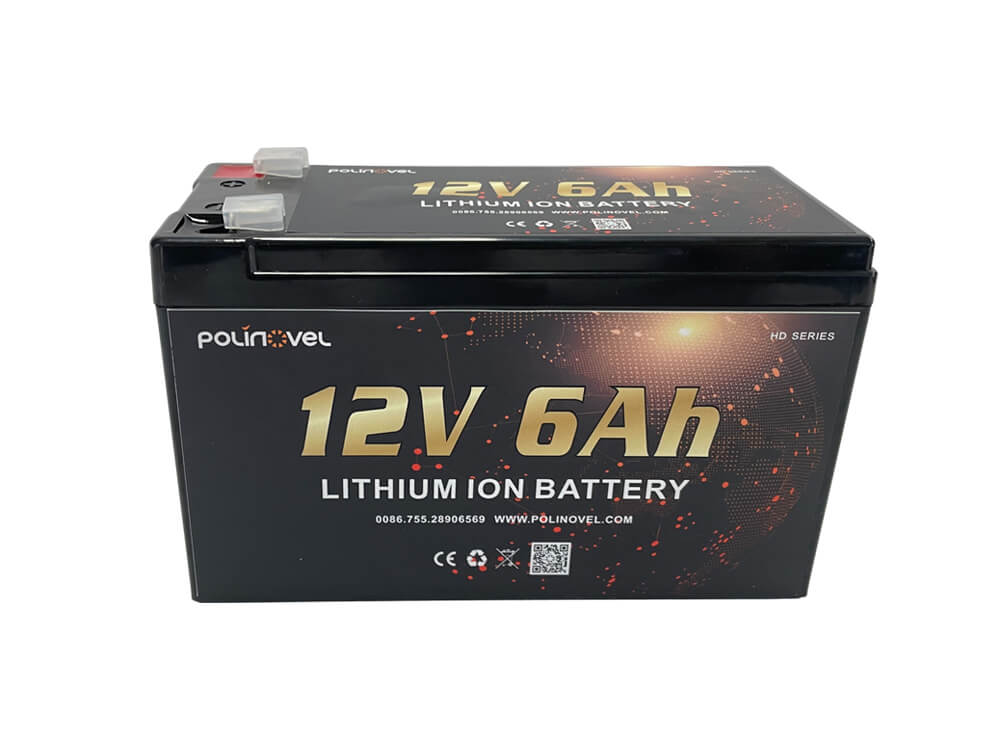

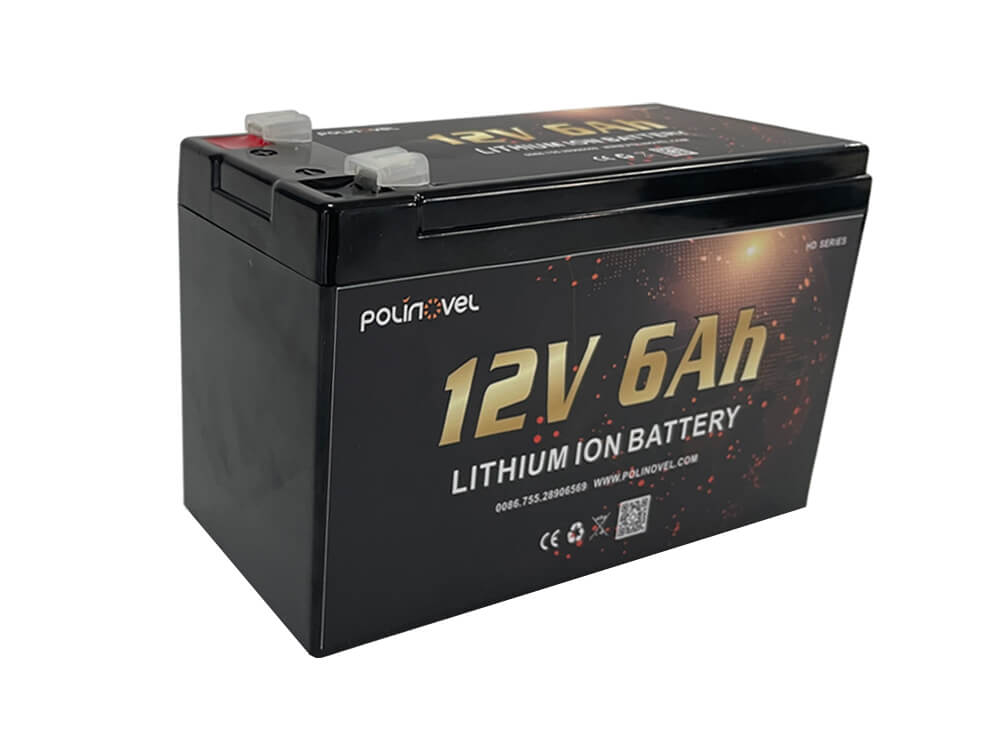

12V Small Lithium Battery for LED Lights
Polinovel 12V small batteries are high-performance batteries built on proven lithium iron phosphate chemistry. They feature an advanced battery management system that keeps the battery running at peak performance while avoiding overcharging, over-discharging, and maximizing cycle life.
Features
-
Safe and proven LiFePO4 battery for high performance
-
Intelligent BMS ensures maximum protections
-
Support series and parallel connection to expand power
-
Long cycle life: withstand 2500+ cycles (1C@DOD100%)
Product Details
| Model | HD1206 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6Ah |
| Standard Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Charge Current | 6A |
| Max. Constant Discharge Current | 9A |
| Peak Discharge Current | 15A @5s |
| Dimension (L*W*H) | 151*65*94mm/5.9*2.6*3.7in |
| Weight | 0.7kg/1.5lbs |
| Cycle Life | >2500 (1C@ DOD100%); >4000 (0.2C@ DOD100%) |
| Series Parallel Application | Up to 4 units in series or 2 units in parallel |
| Charge Temperature | 0 to 60ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature | 10 to 45ºC |
