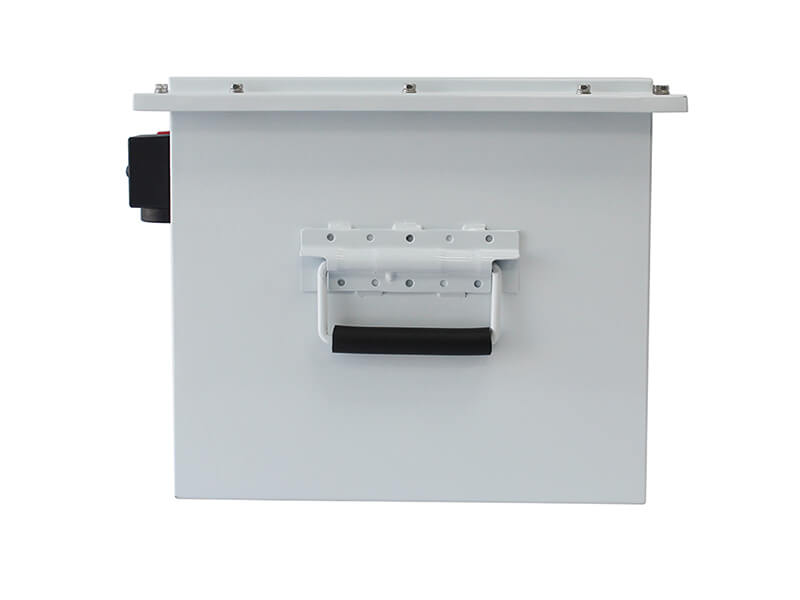

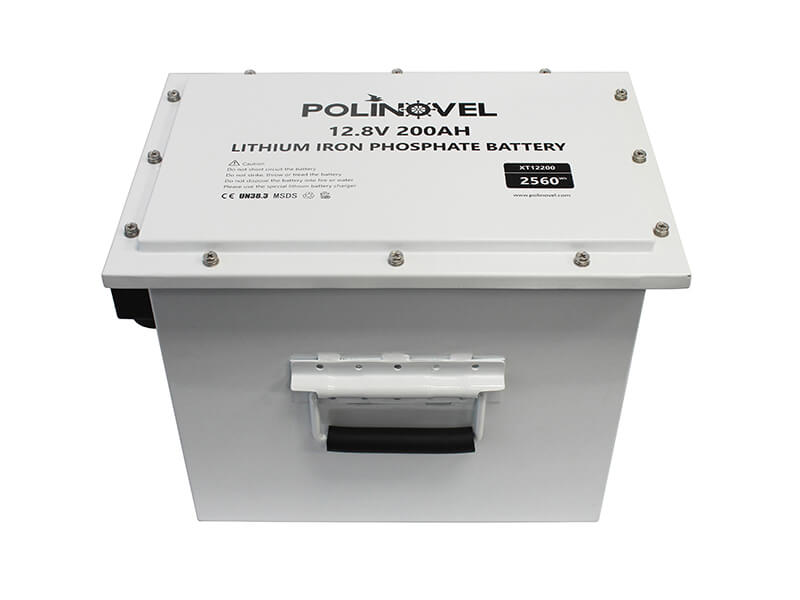

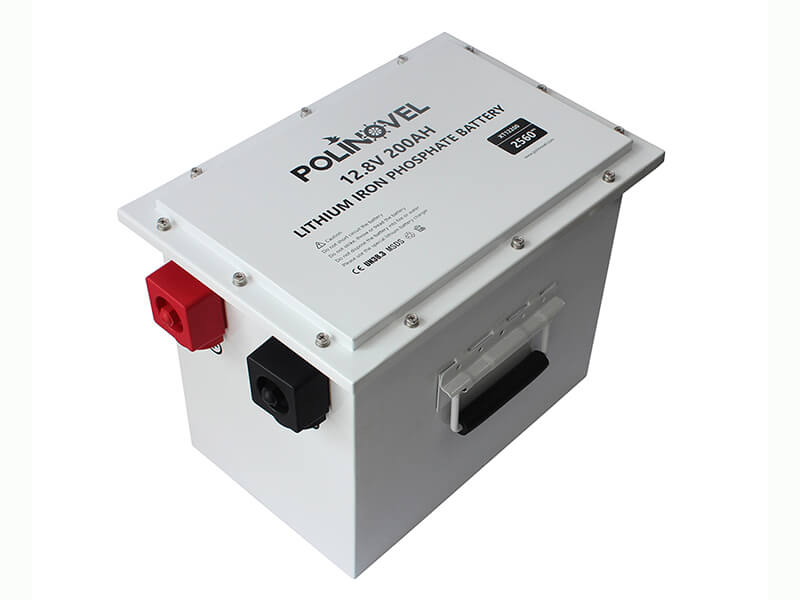

12V 200Ah LiFePO4 Battery XT12200
LiFePO4 XT12200 battery supports 4 pcs series and 4 pcs parallel connection. You can scale your system based on your needs. This LFP battery can provide powerful functions, such as RS485/232 communication.
Features
-
Intelligent battery management system
-
Waterproof level of IP65
-
Openable cover
-
Anti-rust and anti-corrosion
Product Details
| Model | XT12200 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Recommend Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Standard Charge Current | 40A |
| Max. Charge Current | 100A |
| Max. Constant Discharge Current | 100A |
| Peak Discharge Current | 200A (<5s) |
| Dimension (L*W*H) mm | 365*240*279 |
| Weight | 23.5kg |
| Casing Material | Metal |
| IP Rating | IP65 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Self Discharge Per Month | <3% |
| Charge Temperature | 0 to 45ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature | 0 to 40ºC |
Wide Range Of Applications
