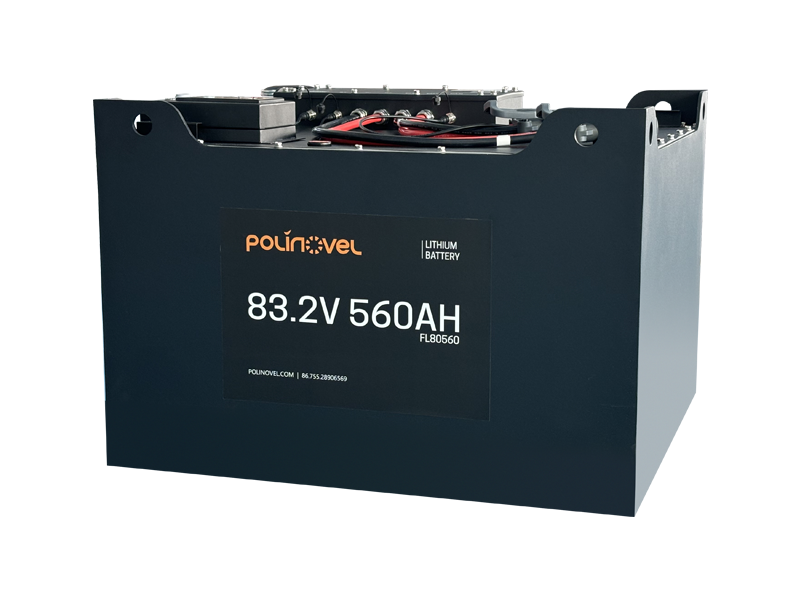

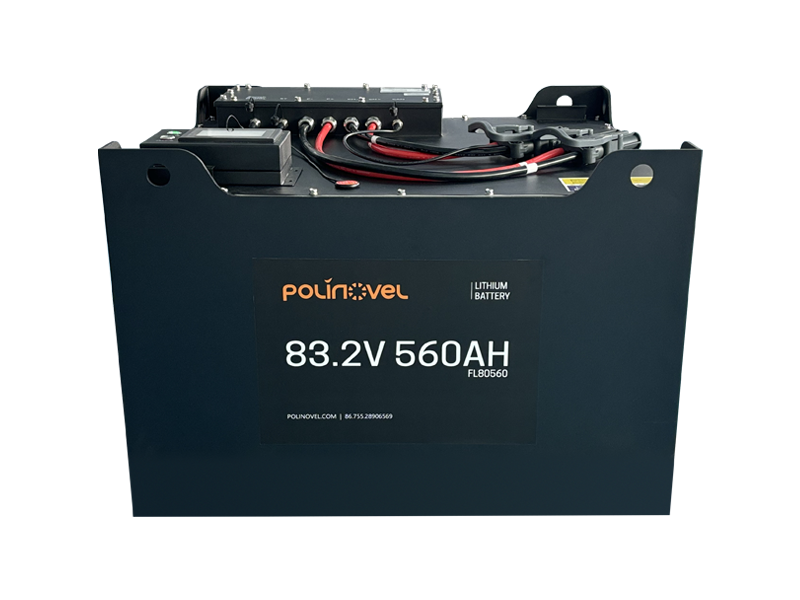

83.2V 560Ah Lithium Forklift Battery
This 83.2V 560Ah LiFePO4 forklift battery features premium LFP cells to deliver exceptional power, extended runtime, and maintenance-free operation. Designed for high-load and high-frequency applications, it is ideal for forklifts, stackers, reach trucks, lift trucks, order pickers, tow motors, pallet jacks, AGVs and more.
Features
-
LiFePO4 battery delivers high power and long runtime
-
Supports high discharge for efficient lifting and driving
-
Intelligent BMS ensures safe, reliable operation
-
Compact design allows easy installation in large forklifts
Product Details
| Model | FL80560 |
| Nominal Voltage | 83.2V |
| Nominal Capacity | 560Ah |
| Energy | 46592Wh |
| Charge Voltage | 94.9V |
| Discharge Cut-off Voltage | 68.9V |
| Charge Current | ≤250A |
| Constant Discharge Current | 200A |
| Peak Discharge Current | 600A @20s |
| Dimension | 830*767*570 mm (32.7*30.2*22.4 in) |
| Weight | 420kg / 926lbs (without counterweight) |
| Cycle Life @DOD100% | ≥2000 cycles |
| Charge Temperature | 0~45ºC |
| Discharge Temperature | -20~60ºC |
| Storage Temperature | 10~45ºC |
