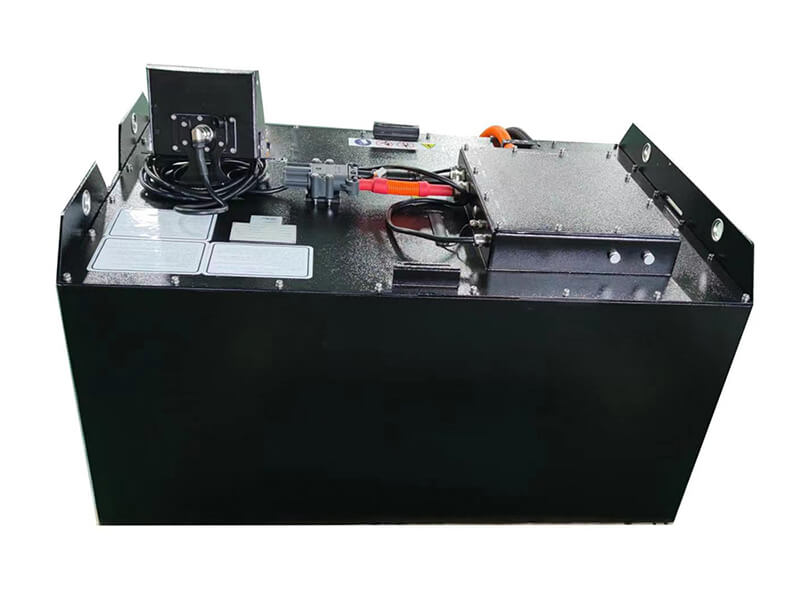

80V 420Ah Lithium Battery LEV80420

This LEV80420 lithium battery has passed the rigorous reliability test of important components which ensures the stability of the whole performance, giving you a wonderful experience.

Features

  • LiFePO4 battery ensures high performance and extended runtime

  • High discharge current for high efficiency

  • Advanced BMS provides overcharge/overdischarge/overcurrent protections

  • Customized battery size for easy drop-in replacement

icon icon icon icon

Parameters

Model LEV80420
Nominal Voltage 80V
Nominal Capacity 420Ah
Energy 33.6kWh
Max. Charge Voltage 91.2V
Discharge Cut-off  Voltage 68.6V
Standard Charge Current ≤200A
Continuous Discharge Current 200A
Peak Current 400A/20s
IP Grade IP54

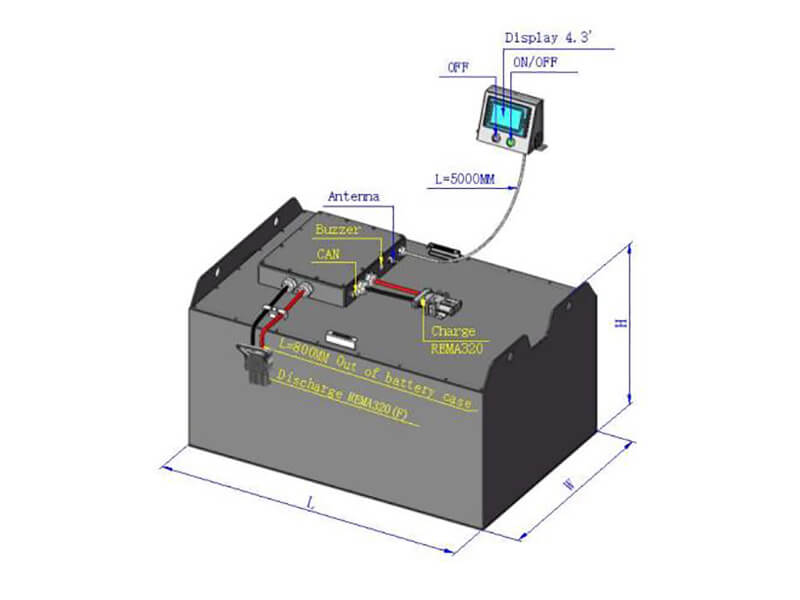

Dimension (L*W*H) 1015*682*550 mm (40*26.9*21.7 in)
Weight 335kg (739 lbs)
Battery Type Lithium Iron Phosphate (LiFePO4)
Charge Temperature 0~45℃
Discharge Temperature -20~55℃
Storage Temperature 20~45℃
