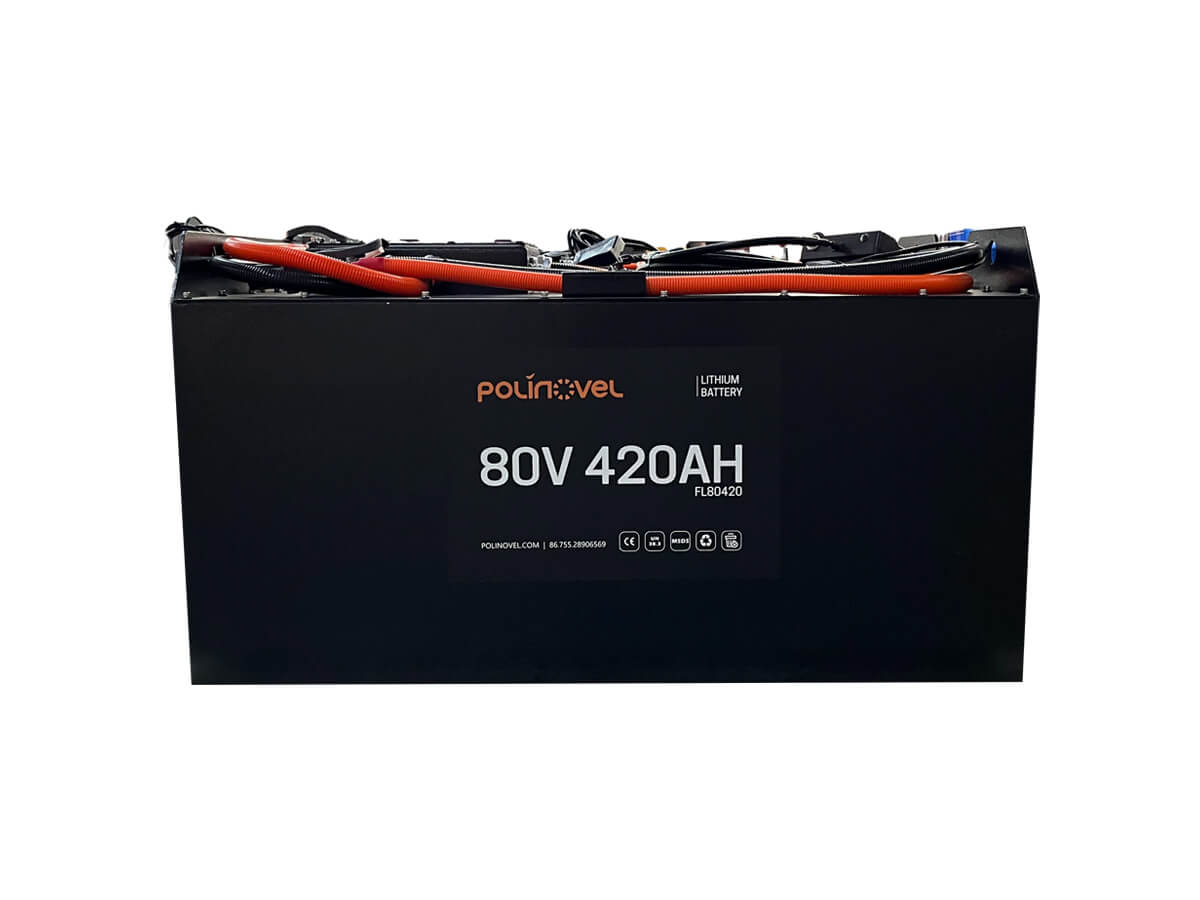

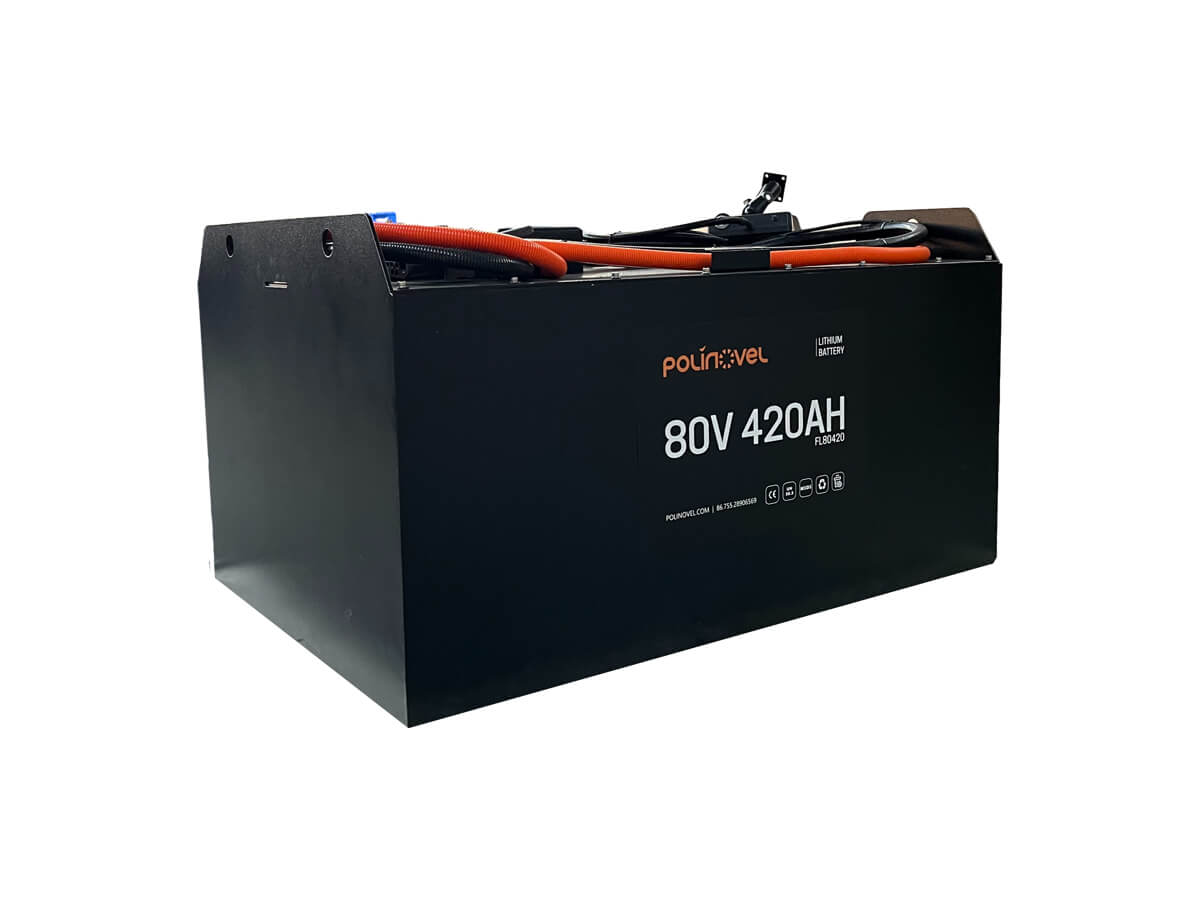

80V 420Ah LiFePO4 Battery For Forklift FL80420
This 80V 420Ah lithium battery utilizes high-quality LFP cells for consistent power, fast charging efficiency, long life and zero maintenance. It is a superior battery solution for many motive power and material handling applications, such as forklifts, tow motors, pallet jacks, AGVs and more.
Features
-
LiFePO4 battery ensures high performance and extended runtime
-
High discharge current for high efficiency
-
Intelligent BMS provides overcharge/overdischarge/overcurrent protections
-
Customizable battery size for easy installation
Parameters
| Model | FL80420 |
| Nominal Voltage | 80V |
| Nominal Capacity | 420Ah |
| Energy | 33600Wh |
| Charge Voltage | 91.2V |
| Discharge Cut-off Voltage | 68.6V |
| Charge Current | ≤200A |
| Constant Discharge Current | 200A |
| Peak Discharge Current | 400A @20s |
| Dimension | 1015*682*550 mm (40*26.9*21.7 in) |
| Weight | 335kg / 739lbs |
| Cycle Life @DOD100% | ≥2000 cycles |
| Charge Temperature | 0~45ºC |
| Discharge Temperature | -20~55ºC |
| Storage Temperature | 20~45ºC |
