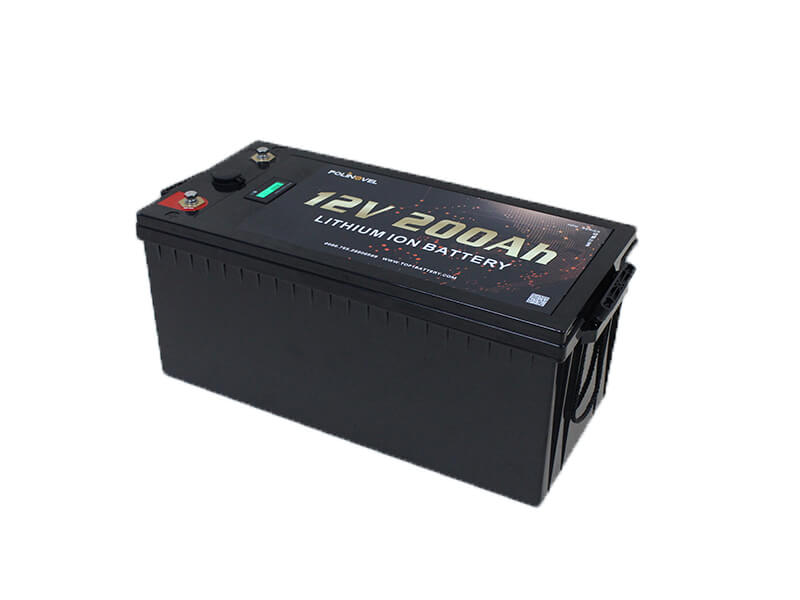

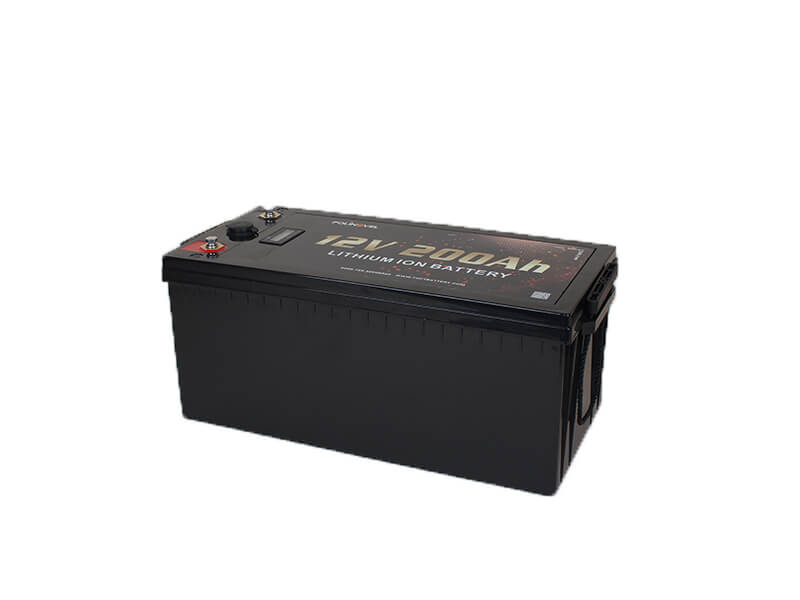

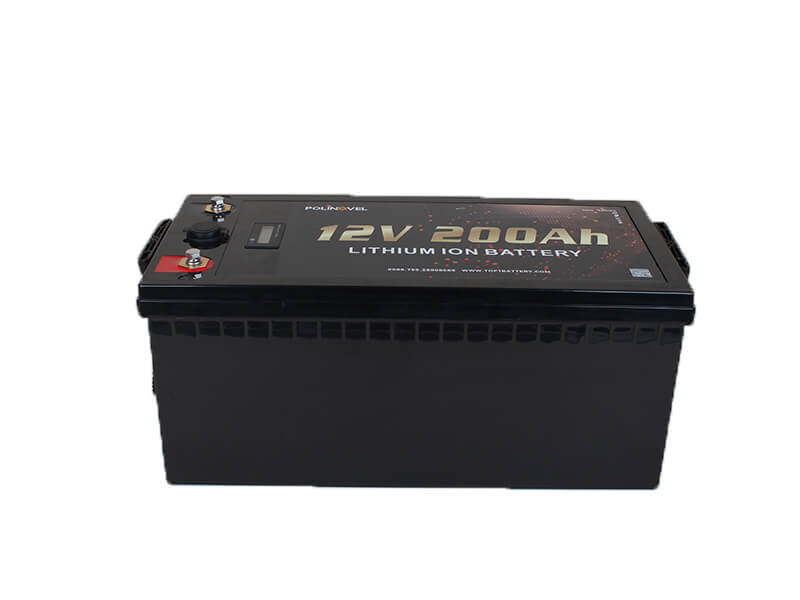

12V 200Ah HDN LiFePO4 Battery HDN12200
This HDN12200 performs well in boats, motorhomes, ships, and other scenarios for having “BMS + Safe Board” dual protection and solid structure.
Features
-
Supports series or parallel connection
-
“BMS + Safe Board” dual protection
-
LCD displaying design
-
Light weight
Product Details
| Model | HDN12200 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Energy | 2560Wh |
| Recommend Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max. Charge Current | 100A |
| Max. Constant Discharge Current | 200A |
| Dimension (L*W*H) mm | 520*240*220 |
| Weight | 27kg |
| Terminal | M8 |
| Casing Material | ABS |
| IP Rating | IP65 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Self Discharge Per Month | <3% |
| Charge Temperature | 0 to 45ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature (1 month) | -20 to 60 ºC |
| Storage Temperature (3 months) | -20 to 45 ºC |
| Storage Temperature (6 months) | -20 to 25 ºC |
Wide Range Of Applications
