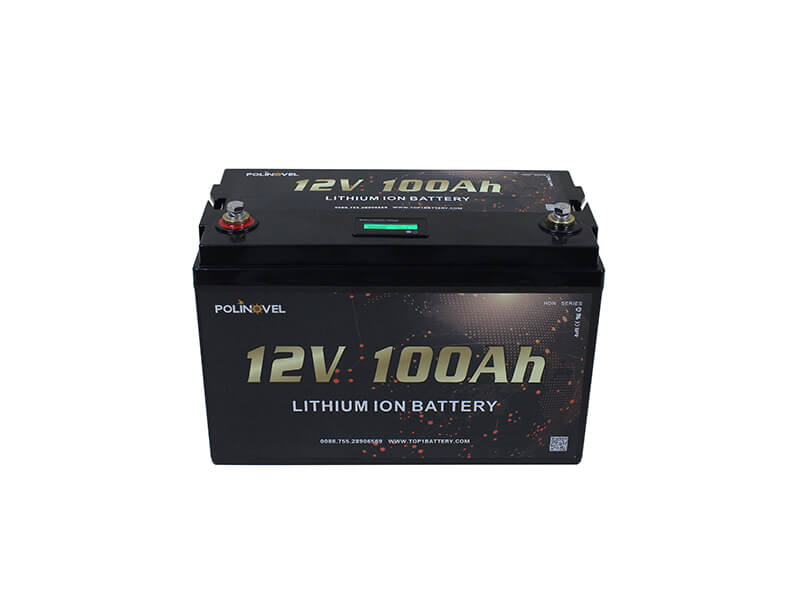

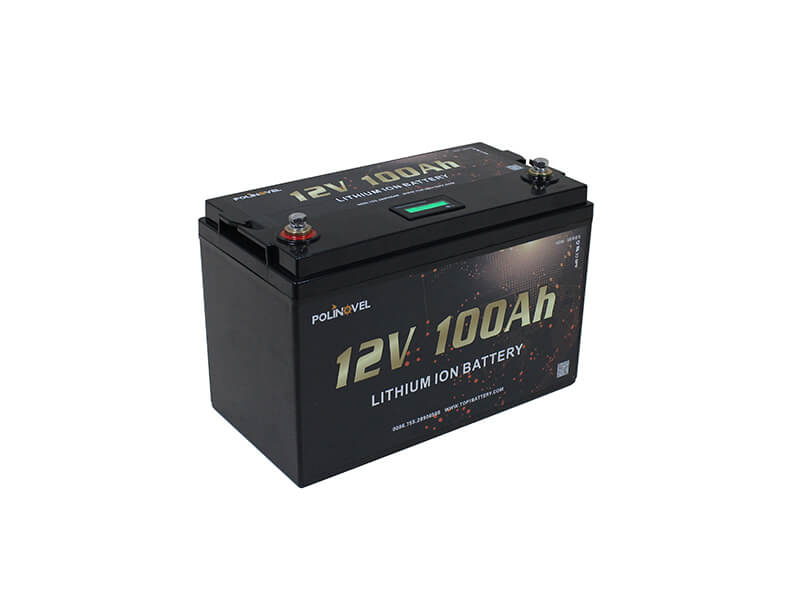

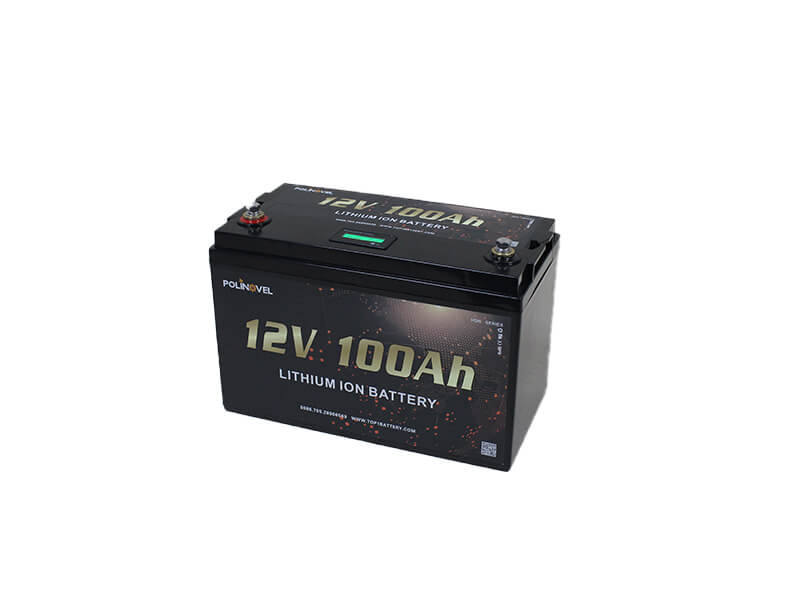

12V 100Ah HDN LiFePO4 Battery HDN12100
This HDN12100 lithium battery has "BMS + Safe Board" dual protection. It ensures safe operation in many scenarios, such as kayaks, ships, motorhomes, etc.
Features
-
"BMS + Safe Board" dual protection
-
Patented screw fastening structure
-
LCD displaying function
-
USB output port
Product Details
| Model | HDN12100 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1280Wh |
| Recommend Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 8V (2.0±0.05vpc, 120~180ms) |
| Max. Charge Current | 100A |
| Max. Constant Discharge Current | 100A |
| Dimension (L*W*H) mm | 329*172*214 |
| Weight | 15kg |
| Terminal | M8 |
| Casing Material | ABS |
| IP Rating | IP65 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Self Discharge Per Month | <3% |
| Charge Temperature | 0 to 45ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature (1 month) | -20 to 60 ºC |
| Storage Temperature (3 months) | -20 to 45 ºC |
| Storage Temperature (6 months) | -20 to 25 ºC |
Wide Range Of Applications
