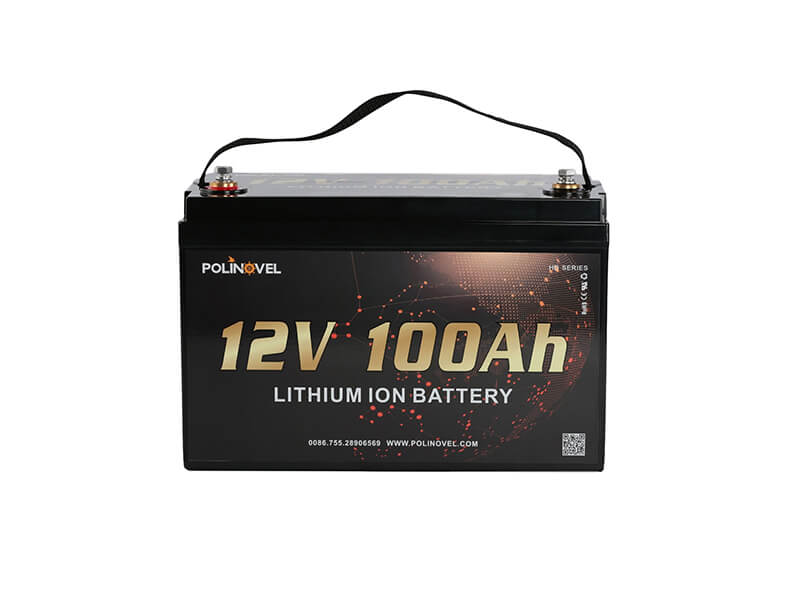

12V 100Ah HD Lithium-ion Battery HD12100
This HD12100 lithium battery has the advantages of having a long life, requiring no maintenance, etc. It performs well in RV or marine applications.
Features
-
Good-quality LiFePO4 battery cells
-
BMS protection
-
Easy to carry
-
Supports series or parallel connection
Product Details
| Model | HD12100 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1280Wh |
| Recommend Charge Voltage | 14.2V – 14.6V |
| Discharge Cut-off Voltage | 8V (2.0±0.05vpc, 120~180ms) |
| Max. Charge Current | 100A |
| Max. Constant Discharge Current | 160A (or 100A) |
| Dimension (L*W*H) mm | 329*172*214 |
| Weight | 14kg |
| Terminal | M8 |
| Casing Material | ABS |
| IP Rating | IP56 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Self Discharge Per Month | <3% |
| Charge Temperature | 0 to 45ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature (1 month) | -20 to 60 ºC |
| Storage Temperature (3 months) | -20 to 45 ºC |
| Storage Temperature (6 months) | -20 to 25 ºC |
Wide Range Of Applications
