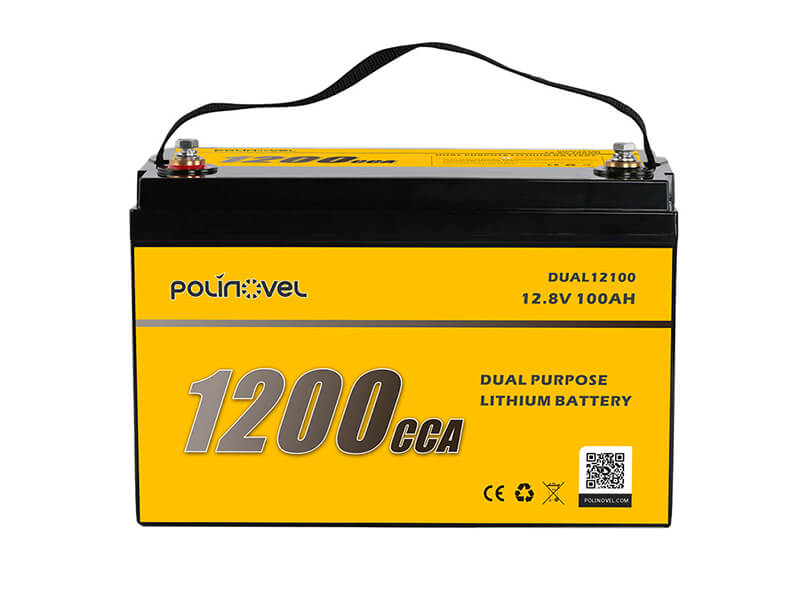

12V 100Ah Dual Purpose Lithium Battery DUAL12100
This DUAL12100 lithium battery is a high-performance dual purpose battery that can handle starting and cycling. It can be expanded up to 4 pcs in parallel or in series to meet different energy needs.
Features
-
Dual purpose battery for starting and cycling
-
Durable structure
-
High continuous discharge rate
-
Intelligent BMS
Product Details
| Model | DUAL12100 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Energy | 1.28kWh |
| Recommend Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Normal Charge Current | 50A |
| Max Charge Current | 100A |
| Continuous Discharge Current | 100A |
| Peak Discharge Current | 350A(@30S) |
| Starting Current | 1200CCA |
| Parallel Connection | Max. 4 units |
| Series Connection | Max. 4 units |
| Dimension (L*W*H) | 329*172*214 mm (13*6.8*8.4 in) |
| Weight | 11.4 kg (25 lbs) |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Charge Temperature | 0～60℃ |
| Discharge Temperature | -20～60℃ |
| Storage Temperature | 10～45℃ |
Wide Range Of Applications
