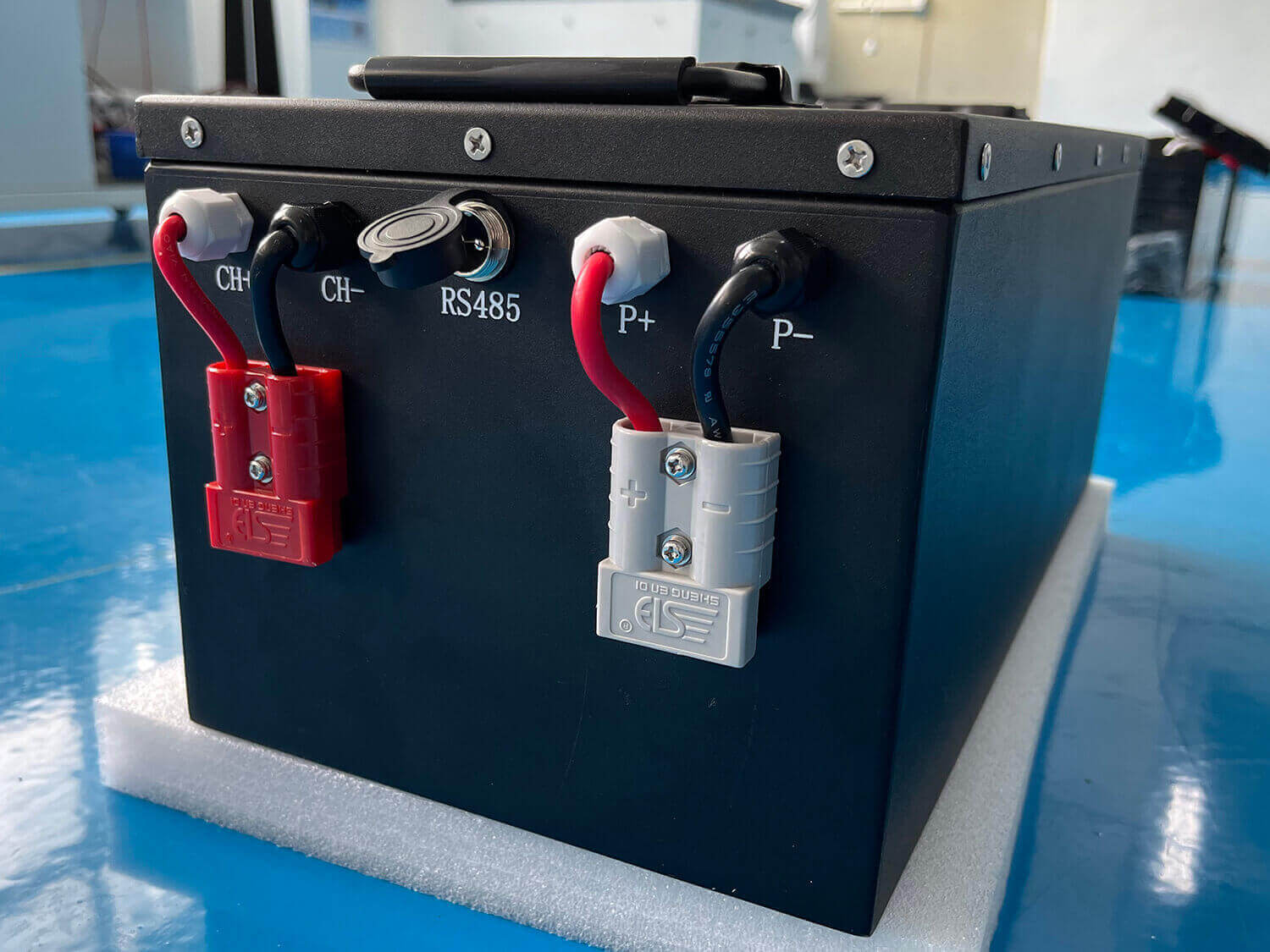

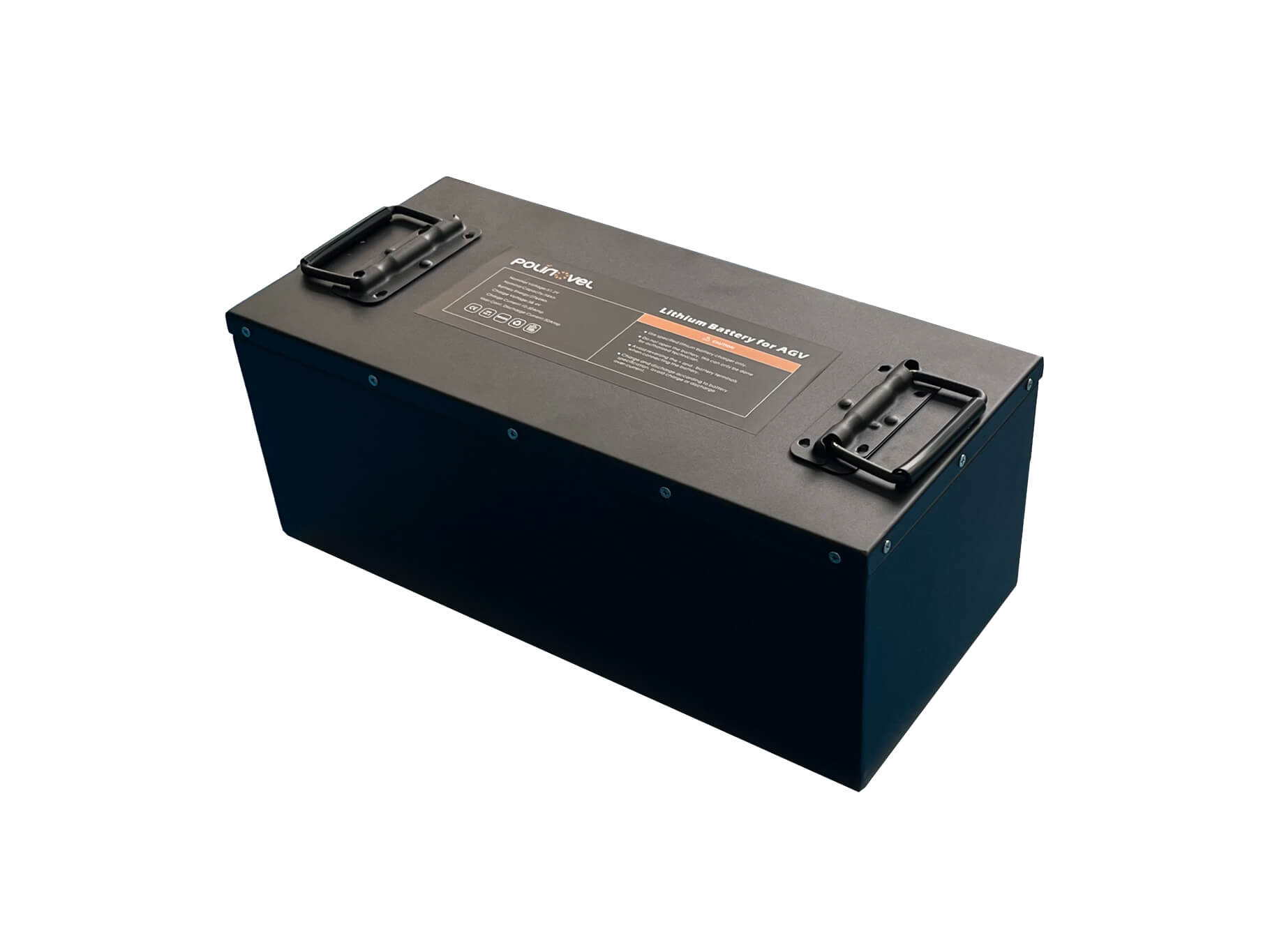

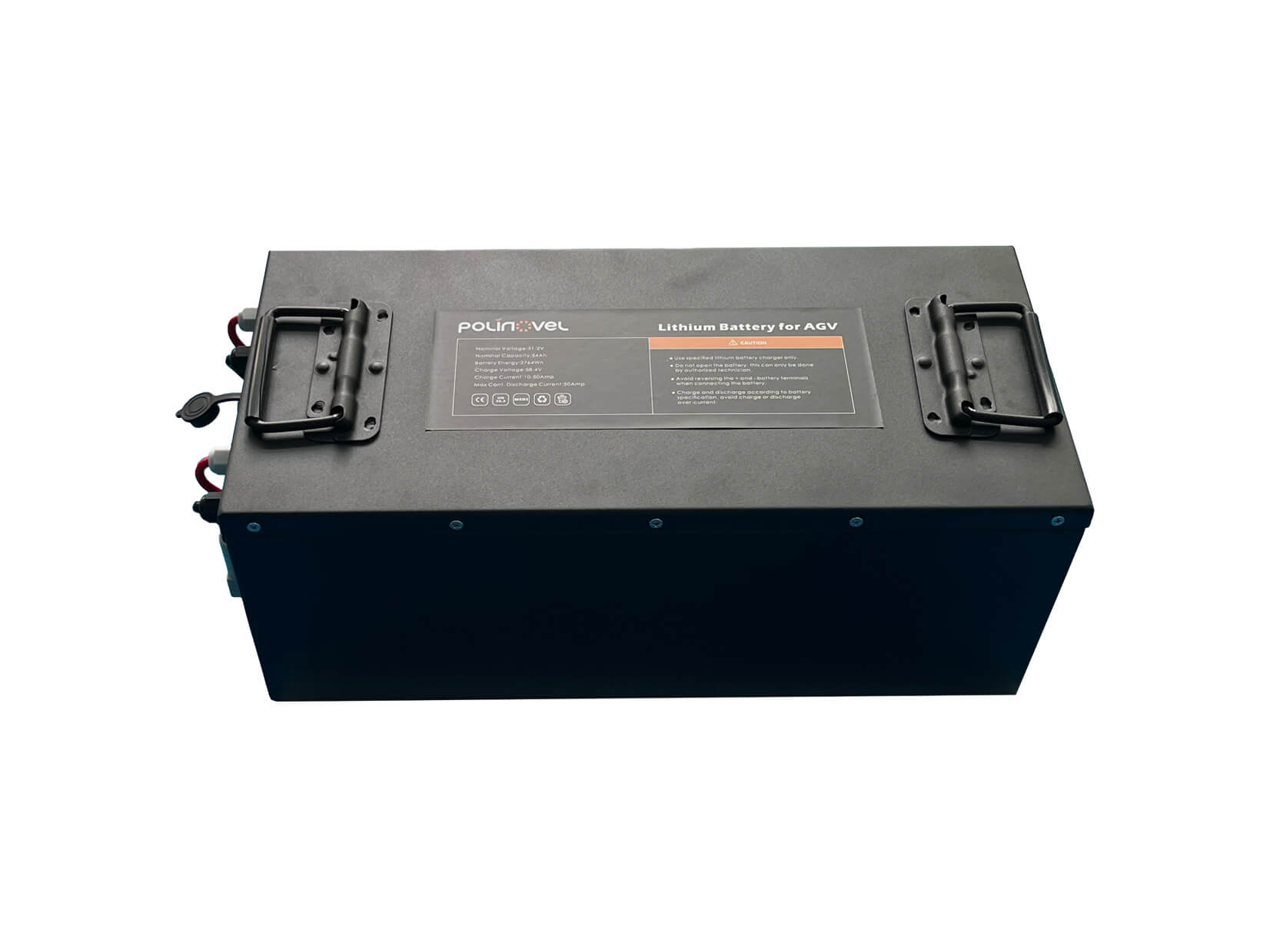

48V 50Ah Lithium Traction Battery for AGVs
This 48V 50Ah lithium traction battery uses Grade-A battery cells with advanced manufacturing processes to satisfy stringent power, quality, and safety requirements for AGVs and other motive power applications.
Features
-
Lithium iron phosphate battery delivers high-quality performance
-
Robust BMS prevents over/under voltage, over current, and extreme temperature
-
Great safety and reliability, can pass the IEC, CE, UN38.3, and MSDS certificates
-
Customize battery with drop-in replacement size for easy installation
Parameters
| Model | LEV4850 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 50Ah |
| Energy | 2560Wh |
| Standard Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Max. Charge Current | 50A |
| Max. Continuous Discharge Current | 50A |
| Peak Discharge Current | 100A (<2s) |
| Dimension (L*W*H) | 460*210*180 mm (18.1*8.3*7.1in) |
| Weight | 29 kg (64lbs) |
| Battery Type | LiFePO4 |
| Charge Temperature | 0～60ºC |
| Discharge Temperature | -20～60ºC |
| Storage Temperature | 10～45ºC |
