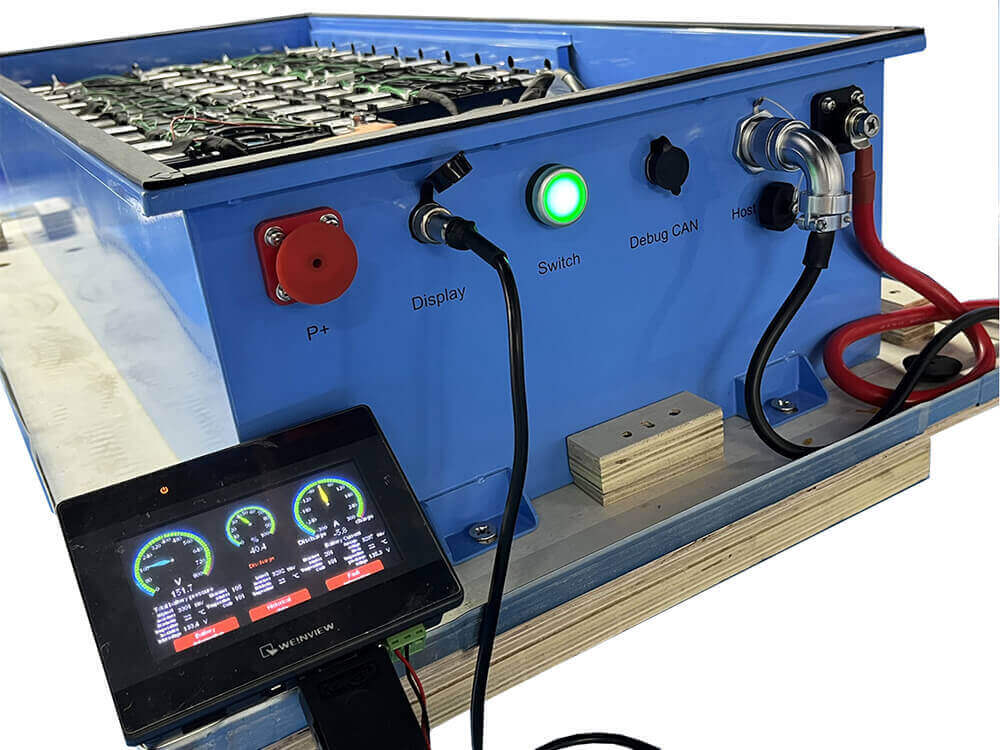

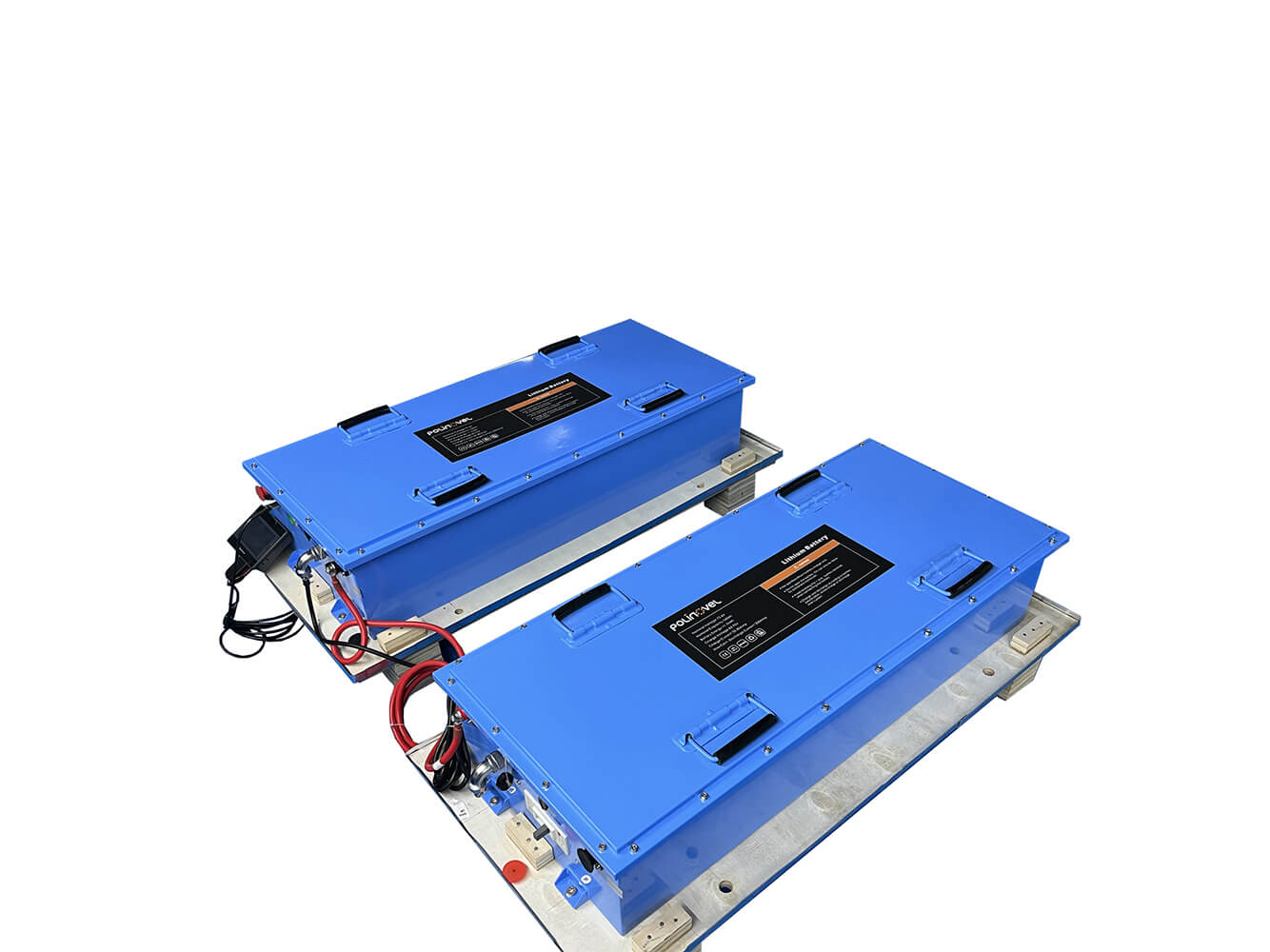

144V 160Ah High Voltage Lithium Traction Battery
This 144V 160Ah lithium traction battery uses Grade-A LiFePO4 battery cells with advanced manufacturing processes to satisfy stringent power, quality, and safety requirements of motive power applications.
Features
-
Lithium iron phosphate battery delivers high-quality performance
-
Robust BMS prevents over/under voltage, current, and temperature
-
Customize battery with drop-in replacement size for easy installation
-

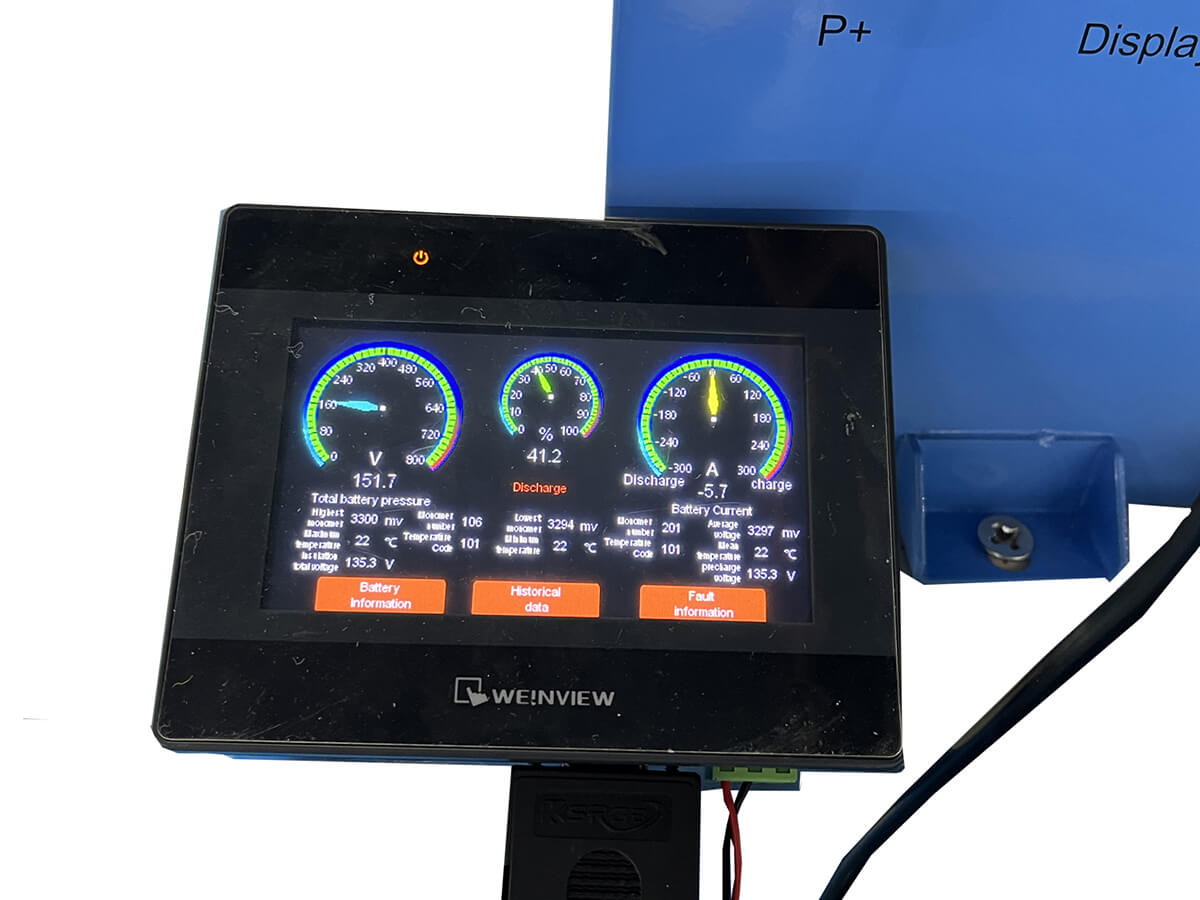

Plug-and-play fuel gauge provides real-time battery status
Parameters
| Model | LEV144160 |
| Configuration | 73.6V 160Ah x 2 in series |
| Nominal Voltage | 147.2V |
| Nominal Capacity | 160Ah |
| Standard Charge Voltage | 167.9V |
| Discharge Cut-off Voltage | 115V |
| Charge Current | 50A |
| Continuous Discharge Current | 200A |
| Peak Discharge Current | 420A @30s |
| Dimension (L*W*H) | 1015*435*230 mm x 2 (40*17.1*9.1 in x 2) |
| Weight | 110 kg x 2 (243 lbs x 2) |
| Battery Type | LiFePO4 |
| Charge Temperature | 0～60ºC |
| Discharge Temperature | -20～60ºC |
| Storage Temperature | 10～45ºC |
Wide Range Of Applications
